Amana DHP074J35BA Ptac Heat Pump 7200 Btu 265V R32

Product Description

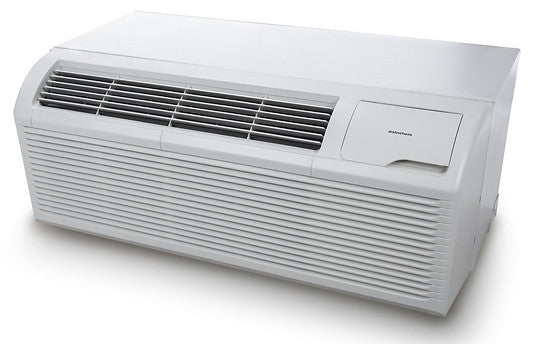

The AMANA DHP074J35BA is a 42-inch packaged terminal air conditioner (PTAC) with an integrated heat pump and electric backup heat strip, designed for commercial applications where 265/277-volt building service is available. It delivers 7,200 BTU/h of cooling at an EER of 11.9 and 6,000 BTU/h of heat pump heating capacity, backed by a 3.5 kW electric heat strip rated at approximately 10,900 BTU/h of supplemental heat. The unit uses R32 refrigerant, which carries a lower global warming potential than R410A. A 20-amp power cord is included. Installation requires a separate PTAC sleeve and rear grille, neither of which is included with the unit.

This unit is rated for commercial use only and requires a building wired for 265/277-volt service. It is not suitable for residential applications. Typical installations include hotels, motels, assisted living facilities, and other multi-room commercial buildings where individual zone control is required. The unit fits a standard 42-inch PTAC sleeve with interior dimensions of 42 inches wide by 16-1/16 inches high by 14-1/8 inches deep. Wall cut-out dimensions are 42-1/4 inches wide by 16-1/4 inches high. Multi-unit installations are common in this product class.

Key Features

• 7,200 BTU/h cooling output at 265 volts with an EER of 11.9
• Heat pump heating at 6,000 BTU/h plus 3.5 kW electric backup heat strip providing approximately 10,900 BTU/h
• R32 refrigerant for lower global warming potential compared to R410A
• Automatic emergency heat activates if heat pump capacity is insufficient or compressor fails
• Three fan speeds plus fan-only mode; temperature display switchable between degrees F and degrees C
• Front desk control configuration available for temperature limiting; compatible with wired wall thermostat
• Condensate dispersion system routes excess condensate to the outdoor coil for evaporation
• Washable front-access filters and concealed front-panel mounting screw to deter unauthorized adjustment

Compatibility

Designed for installation in a standard 42-inch PTAC sleeve. Requires 265/277-volt commercial building wiring. Compatible with wired wall thermostats for remote temperature control and temperature limiting. Sleeve and rear grille are not included and must be ordered separately.

Installation Notes

Installation must be performed by a qualified HVAC technician familiar with commercial PTAC systems and local electrical codes. The building electrical supply must provide 265/277-volt service before installation begins; this unit is not compatible with standard 208/230-volt residential circuits. Power down the circuit and verify zero voltage at the receptacle before inserting or removing the chassis. A PTAC sleeve sized for 42-inch units and a compatible rear grille must be installed in the wall opening prior to chassis installation.

Technical Specifications

• Cooling Capacity: 7,200 BTU/h at 265 volts
• EER: 11.9 at 265 volts
• Heat Pump Heating Capacity: 6,000 BTU/h at 265 volts
• Electric Heat Strip: 3.5 kW (approximately 10,900 BTU/h) at 265 volts
• Voltage: 265 volts
• Power Cord: 20 amp included
• Cooling Amperage: 2.3 amps at 265 volts
• Cooling Wattage: 605 watts at 265 volts
• Electric Heating Amperage: 13.2 amps at 265 volts
• Electric Heating Wattage: 3,500 watts at 265 volts
• Heat Pump Heating Amperage: 2.0 amps at 265 volts
• Heat Pump Heating Wattage: 520 watts at 265 volts
• COP: 3.4 at 265 volts
• Refrigerant: R32
• Airflow (CFM): 337 low / 398 high
• Dehumidification: 0.7 pints per hour
• Unit Type: 42-inch PTAC
• Sleeve Required: Yes (not included)
• Sleeve Size (W x H x D): 42 inches x 16-1/16 inches x 14-1/8 inches
• Wall Cut-Out (W x H): 42-1/4 inches x 16-1/4 inches
• Weight: 94.8 pounds
• Vent Location: Front Top
• Fresh Air Intake: Yes
• Energy Saver Mode: Yes
• WiFi: Not compatible
• Certifications: ETL / AHRI
• Application: Commercial use only

Standard Information

• Brand: AMANA
• Manufacturer Part Number: DHP074J35BA
