Amana DHP073J35BA Distinctions 7k Heat Pump PTAC 208/230V 20 amp, R-32

Product Description

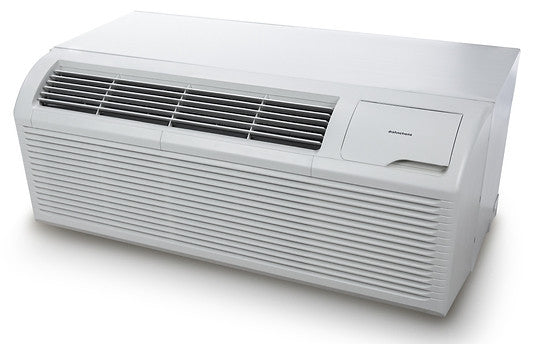

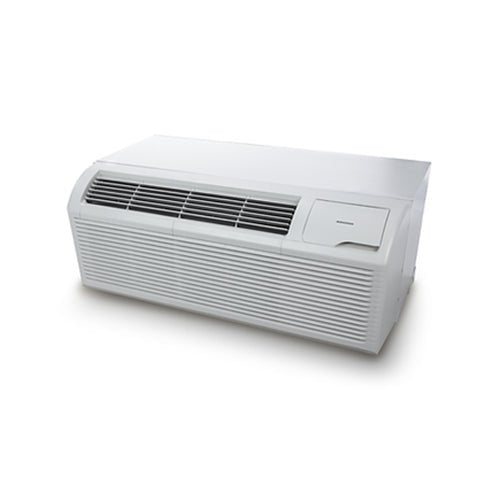

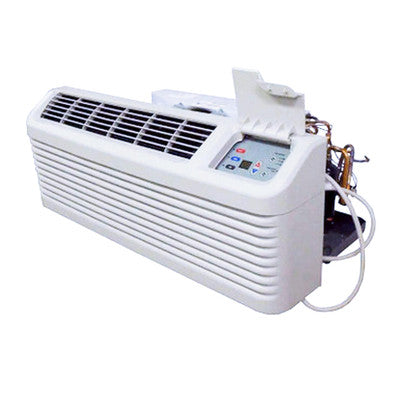

The AMANA DHP073J35BA Distinctions PTAC unit provides reliable and high-quality heating and cooling. It features R-32 refrigerant with a lower Global Warming Potential and dual fan motors for quiet operation. The unit includes an LCDI power cord, a 3-speed fan, and is wired thermostat compatible. It has a cooling capacity of 7,200/7,100 BTU/h and a heating capacity of 6,200/6,000 BTU/h.

• R-32 Refrigerant: Offers lower Global Warming Potential.
• Dual Fan Motors: Allows precise independent fan speed while providing quiet operation.
• LCDI Power Cord Included: No need to match power cord type to unit size.

Product Highlights

This PTAC unit provides efficient and reliable heating and cooling with user-friendly features and energy-saving capabilities.

Product Information

Standard Information

• Brand: AMANA
• Manufacturer Part Number: DHP073J35BA

Technical Specifications

• Cooling Capacity (BTU/h): 7,200 / 7,100
• Heating capacity (BTU/h): 10,900 / 8,900
• ELECTRIC HEAT CAPACITY: 3.5/2.9 kW
• Cooling EER: 13.1
• Voltage: 208-230V
• Cooling Voltage: 208 / 230
• Cooling Amps: 3.0 / 3.3
• Cooling Watts: 550 / 540
• CFM (cool/wet coil) High: 355
• CFM (cool/wet coil) Low: 295
• CFM (dry) High: 355
• CFM (dry) Low: 295
• Vent door CFM: 61.1 / 57.6 / 50.6
• Dehumidification (pints/hr.): 0.70
• Electric Heat Voltage: 208 / 230
• Heater size (kW): 3.5
• Electric Heat Watts: 3,500 / 2,897
• Electric Heat Amps: 15.3 / 13.7
• Reverse Cycle Voltage: 208 / 230
• Reverse Cycle Capacity (BTU/h): 6,200 / 6,000
• Reverse Cycle Amps: 2.6 / 2.7
• Reverse Cycle Watts: 480 / 460
• Reverse Cycle COP: 3.60
• CFM (Dry) High Speed: 355
• W x H x D (inches): 42 x 16 x 21
• Type of Through-the-Wall: 42" PTAC
• Sleeve Required for Install: Yes
• Fits Sleeve Size (in.): 42
• Refrigerant Type: R32
• Compressor: Standard
• Energy Star: No
• CFMs: 295 / 355 (L / H)
• Includes Heat Mode: Yes
• Heat Type: Heat Pump with Back-Up Electric
• Cooling BTUs (@208V): 7100
• EER (@208V): 13.1
• Cooling Amps (@208V): 3.3
• Cooling Watts (@208V): 540
• Electric Heat Strip Size (kW - @208V): 2.9
• Electric Heating BTUs (@208V): 8900
• Electric Heating Amps (@208V): 13.7
• Electric Heating Watts (@208V): 2897
• Heat Pump BTUs (@208V): 6000
• COP (@208V): 3.6
• Heat Pump Heating Amps (@208V): 2.7
• Heat Pump Heating Watts (@208V): 460
• Cooling BTUs (@230V): 7200
• Electric Heat Strip Size (kW - @230V): 3.5
• Electric Heating BTUs (@230V): 10900
• Electric Heating Amps (@230V): 15.3
• Electric Heating Watts (@230V): 3500
• Heat Pump BTUs (@230V): 6200
• Heat Pump Heating Amps (@230V): 2.6
• Heat Pump Heating Watts (@230V): 480
• Vent Location: Front Top
• Make-Up Air: No
• Energy Saver Mode: Yes
• Fan Speeds: 3
• Control Type: Electronic/Digital
• Connectivity: Not WiFi Compatible
• 24 Hour ON/OFF Timer: No
• Remote Control: No
• Fresh Air Intake: Yes
• Sleep Mode: No
• Certifications: ETL / AHRI
• Plug Face (NEMA): 6-20P
• Circuit Breaker Size (Amps): 20
• Cord Length: NA
• Model #: DHP073J35BA
• Voltage Requirements: 208V/230V
