Amana DCP153J50BA Distinctions 15k Electric Heat PTAC 208/230V 30 amp replacement DCP153A50AA

Product Description

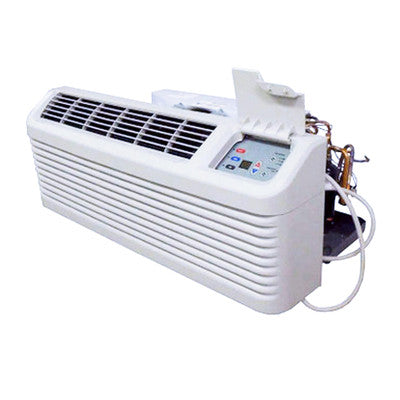

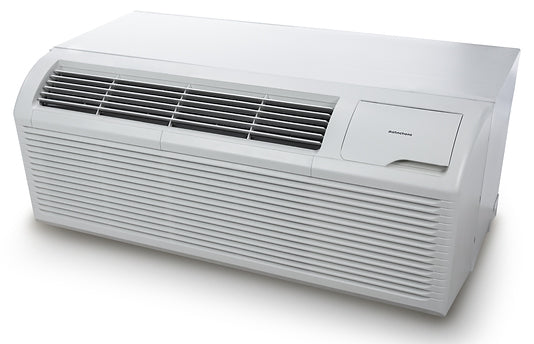

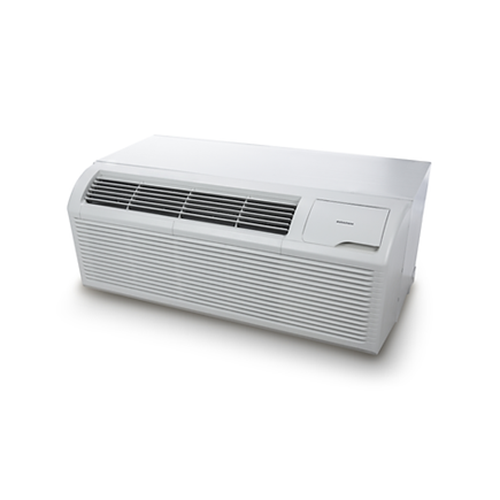

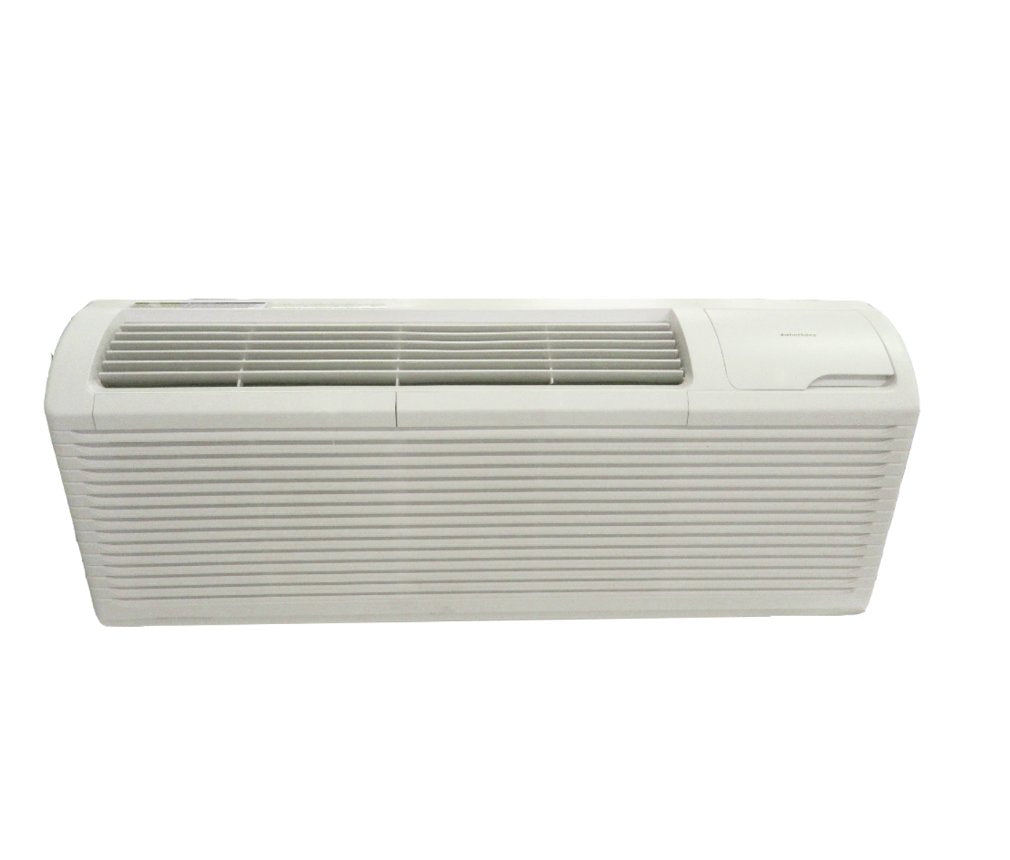

The AMANA DCP153J50BA Distinctions PTAC unit provides 14,700/14,500 BTUs of cooling and a 5.0 kW electric heater. Designed for residential and commercial use with 208/230 volt electricity, it features R-32 refrigerant and a 30 amp power cord. This PTAC unit is designed to fit the standard 42” x 16” sleeve footprint.

• R-32 Refrigerant with lower Global Warming Potential (GWP)
• Dual Fan Motors allow precise independent fan speed for quiet operation
• Easy Pull-Out Filters are washable and easy to maintain

Product Highlights

The Amana DCP153J50BA PTAC unit offers energy efficiency, automatic emergency heat, and a condensate dispersion system for rapid evaporation.

Product Information

Standard Information

• Brand: AMANA
• Manufacturer Part Number: DCP153J50BA

Technical Specifications

• Cooling Capacity (BTU/h): 14,700 / 14,500
• Electric Heat Capacity: 5.0 / 4.8 kW
• EER: 10.6
• Voltage: 208-230V
• Amps: 7.5 / 8.9
• Watts: 1,390 / 1,370
• CFM (cool/wet coil) High: 430
• CFM (cool/wet coil) Low: 349
• CFM (dry) High: 430
• CFM (dry) Low: 349
• Vent door CFM: 62 / 60 / 56
• Dehumidification (pints/hr.): 4.55
• Electric Heat Voltage: 208 / 230
• Heating capacity (BTU/h): 15,000 / 12,200
• Electric Heat Watts: 5,000 / 4,100
• Electric Heat Amps: 22.3 / 20.1
• W x H x D (inches): 42 x 16 x 21
• Net weight (lbs.): 105.82
• Type of Through-the-Wall: 42" PTAC
• Sleeve Required for Install: Yes
• Fits Sleeve Size (in.): 42
• Refrigerant Type: R32
• Compressor: Standard
• Energy Star: No
• CFMs: 349 / 430 (L / H)
• Includes Heat Mode: Yes
• Heat Type: Electric Resistance Only
• Cooling BTUs (@208V): 14500
• Cooling Amps (@208V): 8.9
• Cooling Watts (@208V): 1370
• Electric Heat Strip Size (kW - @208V): 4.8
• Electric Heating BTUs (@208V): 12200
• Electric Heating Amps (@208V): 20.1
• Electric Heating Watts (@208V): 4100
• Cooling BTUs (@230V): 14700
• Cooling Amps (@230V): 7.5
• Cooling Watts (@230V): 1390
• Electric Heat Strip Size (kW - @230V): 5.0
• Electric Heating BTUs (@230V): 15000
• Electric Heating Amps (@230V): 22.3
• Electric Heating Watts (@230V): 5000
• Vent Location: Front Top
• Make-Up Air: No
• Energy Saver Mode: Yes
• Fan Speeds: 3
• Control Type: Electronic/Digital
• Connectivity: Not WiFi Compatible
• 24 Hour ON/OFF Timer: No
• Remote Control: No
• Fresh Air Intake: Yes
• Sleep Mode: No
• Certifications: ETL / AHRI
• Plug Face (NEMA): 6-30P
• Circuit Breaker Size (Amps): 30
• Cord Length: NA
• Amperage: 30-amp service (NEMA 6-30 plug type)
• Refrigerant: R-32 refrigerant
• Application: designed for commercial/hospitality electrical infrastructure
