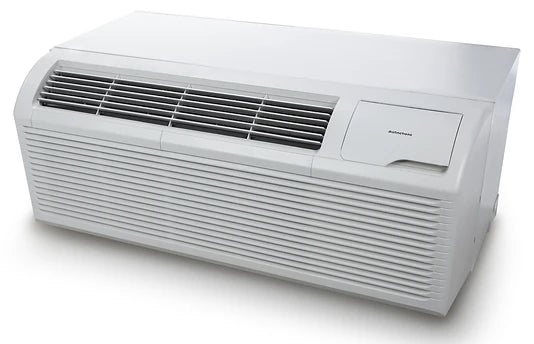

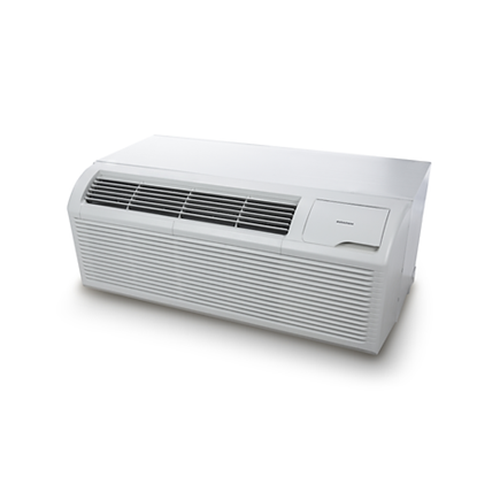

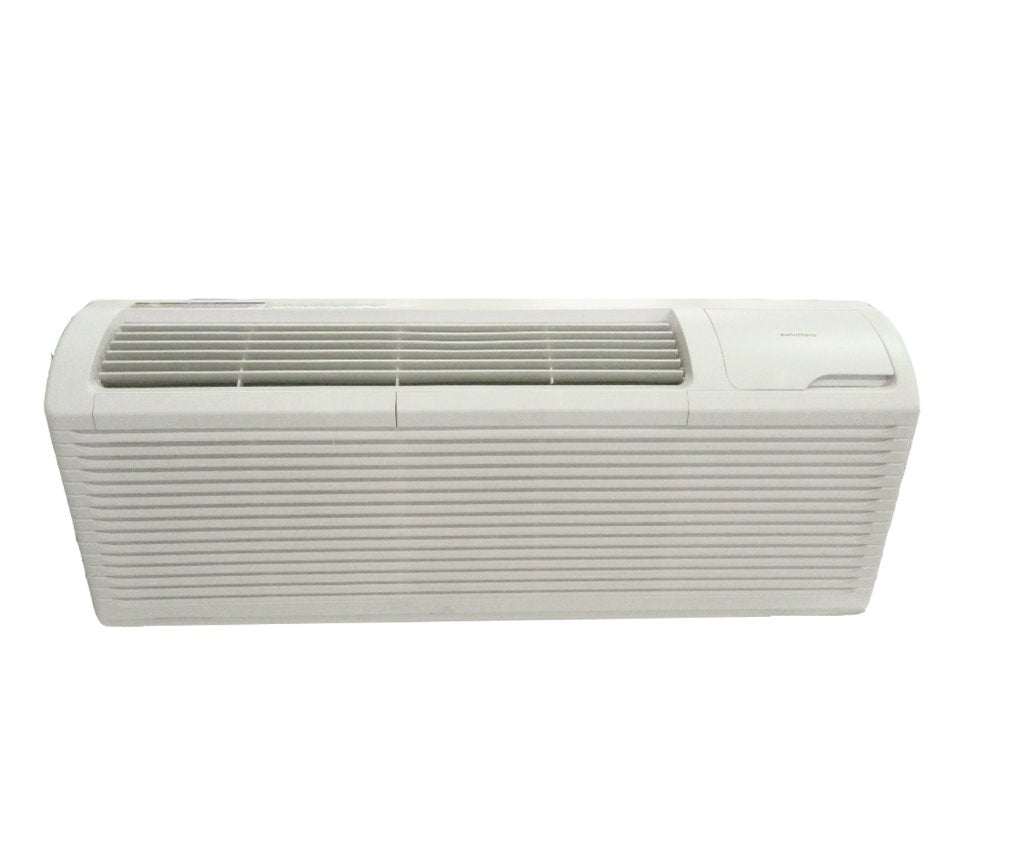

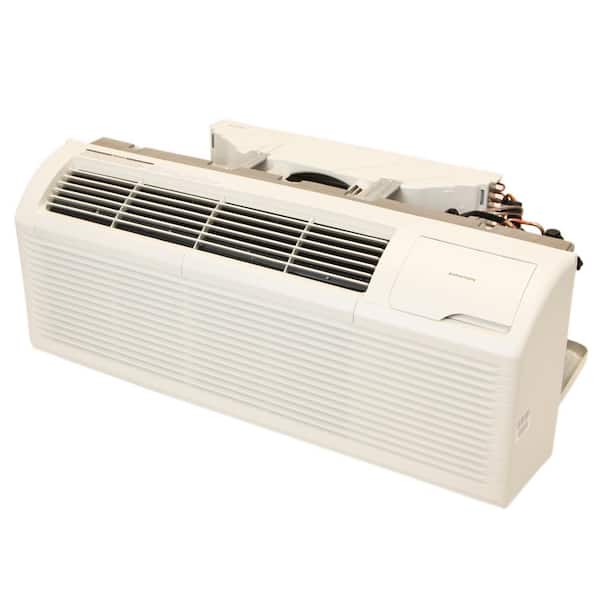

Amana DCP123J50BA Distinctions 12000 BTU Air Conditioner 5.0 kW replacement DCP123A50AA

Product Description

The Amana DCP123J50BA Distinctions through-the-wall air conditioner has a modern keypad design and is energy efficient with an EER up to 13.1. It provides precise, quiet operation and complete temperature control with hard wire/wireless thermostat options. It features increased dehumidification and easy filter access. This unit includes a filter drier for sealed system refrigerant R32.

• Energy efficient with EER up to 13.1 for lower utility costs
• 7-button touchpad provides complete temperature control
• Factory run tested and leaks are proven

Product Highlights

The Amana DCP123J50BA PTAC air conditioner provides 12000 BTU cooling and a 5.0 kW electric heater. It operates on 208/230V and features R-32 refrigerant, dual fan motors, and washable filters.

Product Information

Standard Information

• Brand: AMANA
• Manufacturer Part Number: DCP123J50BA

Technical Specifications

• Voltage: 208 / 230
• Capacity (BTU/h): 12,000 / 11,800
• Amps: 22.3 / 20.1
• Watts: 5,000 / 4,100
• EER: 10.7
• CFM (cool/wet coil) High: 431
• CFM (cool/wet coil) Low: 348
• CFM (dry) High: 431
• CFM (dry) Low: 348
• Vent door CFM: 62 / 60 / 56
• Dehumidification (pints/hr.): 2.85
• Heater size (kW): 5.0
• Heating capacity (BTU/h): 15,000 / 12,200
• Brand: Amana
• Control Type: Electronic/Digital
• Cooling Capacity: 12,000 Btu
• Flow Rate: 431 cfm
• Heating Capacity: 15,000 Btu
• Motor Type: Dual Fan
• Nominal Capacity: 12,000 Btu
• Number of Speeds: 3
• Power Rating: 5000 W
• Refrigerant Type: R-32
• Type: Air Conditioner
• Voltage Rating: 208/230 V
• Type of Through-the-Wall: 42" PTAC
• Sleeve Required for Install: Yes
• Fits Sleeve Size (in.): 42
• Compressor: Standard
• Energy Star: No
• Includes Heat Mode: Yes
• Heat Type: Electric Resistance Only
• Cooling BTUs (@208V): 11800
• Cooling Amps (@208V): 6.1
• Cooling Watts (@208V): 1060
• Electric Heat Strip Size (kW - @208V): 4.8
• Electric Heating BTUs (@208V): 12200
• Electric Heating Amps (@208V): 20.1
• Electric Heating Watts (@208V): 4100
• Cooling BTUs (@230V): 12000
• Cooling Amps (@230V): 5.5
• Cooling Watts (@230V): 1080
• Electric Heat Strip Size (kW - @230V): 5.0
• Electric Heating BTUs (@230V): 15000
• Electric Heating Amps (@230V): 22.3
• Electric Heating Watts (@230V): 5000
• Vent Location: Front Top
• Make-Up Air: No
• Energy Saver Mode: Yes
• Fan Speeds: 3
• Connectivity: Not WiFi Compatible
• 24 Hour ON/OFF Timer: No
• Remote Control: No
• Fresh Air Intake: Yes
• Sleep Mode: No
• Certifications: ETL / AHRI
• Plug Face (NEMA): 6-30P
• Circuit Breaker Size (Amps): 30
• Cord Length: NA
• Nominal cooling capacity: ~12,000 BTU/h
• Electric-heat backup: up to ~15,000 BTU (5.0 kW) at 230 V
• Energy Efficiency Ratio (EER): 10.7
• Refrigerant: R-32
• Fan: Dual fan motors and three-speed fan with constant-fan mode
