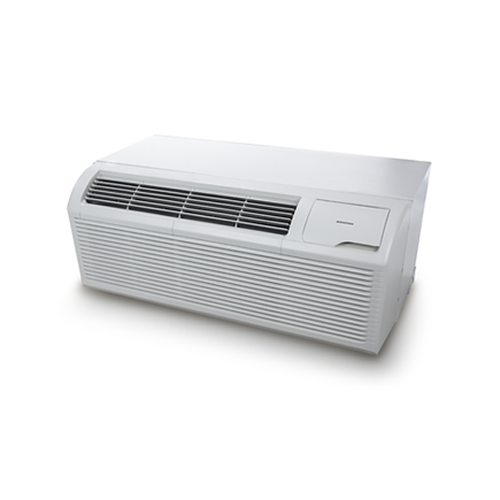

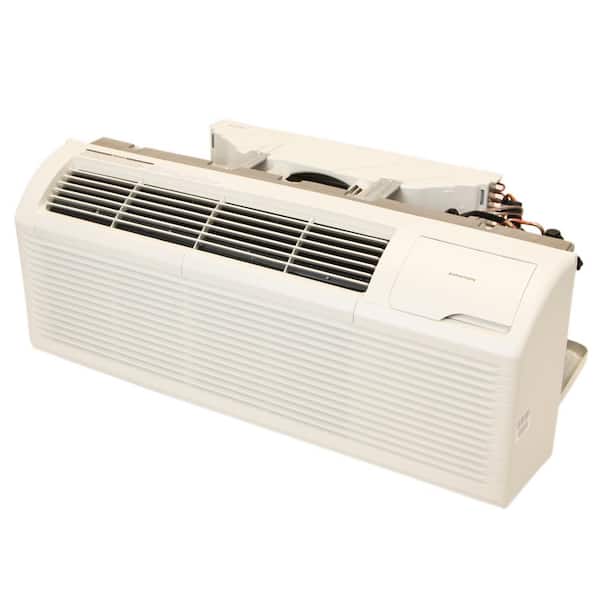

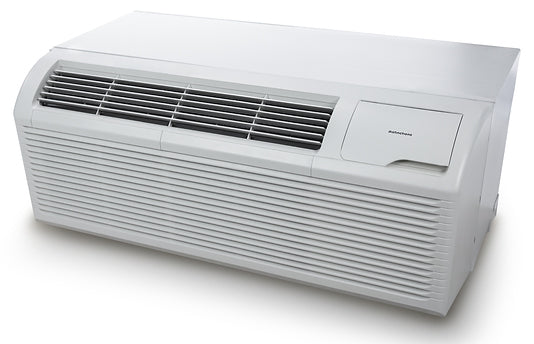

Amana DCP123J35BA Distinctions 12k Electric Heat PTAC 208/230V 20 amp, R-32

Product Description

The AMANA DCP123J35BA Distinctions PTAC unit provides a reliable, high-quality option for ideal comfort. This unit offers 11,800 / 12,000 BTUs of cooling power and a 3.5 kW electric heater, providing approximately 8,900 / 10,900 BTUs of electric backup heat. It also includes a 20 amp power cord and uses R-32 refrigerant.

• R-32 Refrigerant: 68% lower Global Warming Potential (GWP) and can reduce direct emissions from refrigerant by up to 73.6% as compared to R-410A
• Dual Fan Motors: Allows precise independent fan speed while providing quiet operation.
• LCDI Power Cord Included: No need to match power cord type to unit size.

Product Highlights

This PTAC unit features R-32 refrigerant, dual fan motors, and an LCDI power cord. It offers energy efficiencies and automatic emergency heat, with easy pull-out filters and a condensate dispersion system.

Product Information

Standard Information

• Brand: AMANA
• Manufacturer Part Number: DCP123J35BA

Technical Specifications

• Cooling Voltage: 208 / 230
• Capacity (BTU/h): 12,000 / 11,800
• Amps: 14.96 / 13.7
• Watts: 3,500 / 2,897
• EER: 10.7
• CFM (cool/wet coil) High: 431
• CFM (cool/wet coil) Low: 348
• CFM (dry) High: 431
• CFM (dry) Low: 348
• Vent door CFM: 62 / 60 / 56
• Dehumidification (pints/hr.): 2.85
• Electric Heat Voltage: 208 / 230
• Heater size (kW): 3.5
• Heating capacity (BTU/h): 10,900 / 8,900
• W x H x D (inches): 42 x 16 x 21
• Type of Through-the-Wall: 42" PTAC
• Sleeve Required for Install: Yes
• Fits Sleeve Size (in.): 42
• Refrigerant Type: R32
• Compressor: Standard
• Energy Star: No
• CFMs: 348 / 431 (L / H)
• Includes Heat Mode: Yes
• Heat Type: Electric Resistance Only
• Cooling BTUs (@208V): 11800
• Cooling Amps (@208V): 6.1
• Cooling Watts (@208V): 1060
• Electric Heat Strip Size (kW - @208V): 3.5
• Electric Heating BTUs (@208V): 8900
• Electric Heating Amps (@208V): 13.7
• Electric Heating Watts (@208V): 2897
• Cooling BTUs (@230V): 12000
• Cooling Amps (@230V): 5.5
• Cooling Watts (@230V): 1080
• Electric Heat Strip Size (kW - @230V): 3.5
• Electric Heating BTUs (@230V): 10900
• Electric Heating Amps (@230V): 14.96
• Electric Heating Watts (@230V): 3500
• Vent Location: Front Top
• Make-Up Air: No
• Energy Saver Mode: Yes
• Fan Speeds: 3
• Control Type: Electronic/Digital
• Connectivity: Not WiFi Compatible
• 24 Hour ON/OFF Timer: No
• Remote Control: No
• Fresh Air Intake: Yes
• Sleep Mode: No
• Certifications: ETL / AHRI
• Voltage: 208-230V
• Plug Face (NEMA): 6-20P
• Circuit Breaker Size (Amps): 20
• Cord Length: NA
