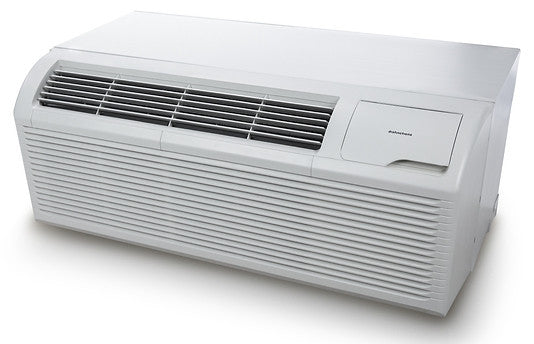

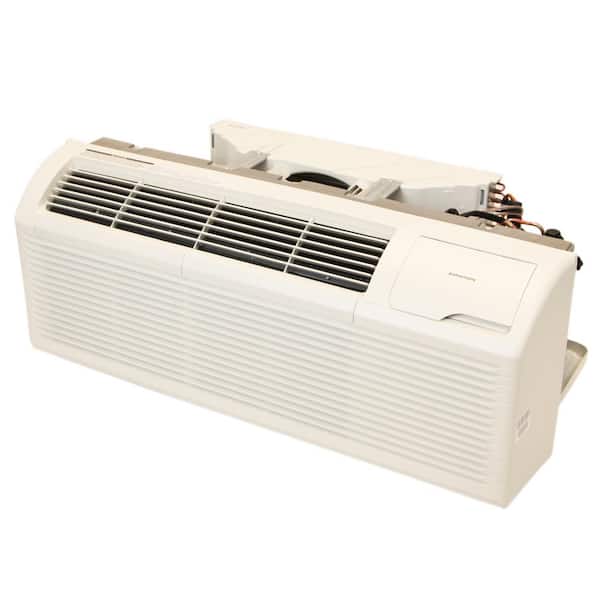

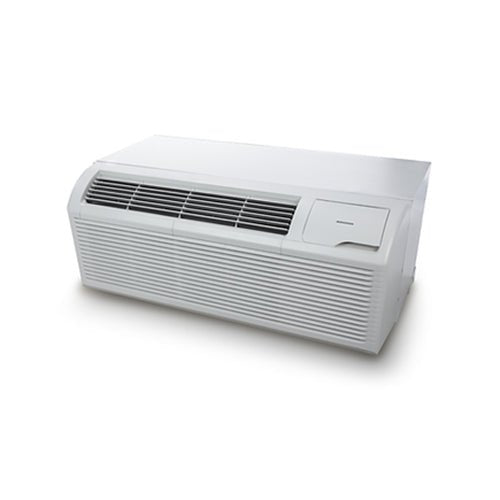

Amana DCP123J25BA Distinctions 12k Electric Heat PTAC 208/230V 15 amp

Product Description

The Amana DCP123J25BA PTAC unit is designed for residential and light commercial use, requiring a compact system with reliable cooling and electric heating. With a 12,000 BTU cooling capacity, 2.5kW electric heat, and 230V operation, it provides year-round comfort. Designed for everyday tasks and consistent reliable performance.

• R-32 Refrigerant: 68% lower Global Warming Potential (GWP) and can reduce direct emissions from refrigerant by up to 73.6% as compared to R-410A
• Dual Fan Motors: Allows precise independent fan speed while providing quiet operation.
• LCDI Power Cord Included: No need to match power cord type to unit size.

Product Highlights

This Amana PTAC unit features a 3-speed fan, constant fan, and wired thermostat compatibility. It offers energy efficiencies and automatic emergency heat. The easy pull-out filters are washable and easy to maintain.

Product Information

Standard Information

• Brand: AMANA
• Manufacturer Part Number: DCP123J25BA

Technical Specifications

• Voltage: 208 / 230V
• Capacity (BTU/h): 12,000 / 11,800
• Amps: 11.3 / 10.3
• Watts: 2,580 / 2,150
• EER: 10.7
• CFM (cool/wet coil) High: 431
• CFM (cool/wet coil) Low: 348
• CFM (dry) High: 431
• CFM (dry) Low: 348
• Vent door CFM: 62 / 60 / 56
• Dehumidification (pints/hr.): 2.85
• Heater size (kW): 2.5
• Heating capacity (BTU/h): 7,800 / 6,300
• Dimensions W x H x D (inches): 42 x 16 x 21
• Net weight (lbs.): 103.62
• Type of Through-the-Wall: 42" PTAC
• Sleeve Required for Install: Yes
• Fits Sleeve Size (in.): 42
• Refrigerant Type: R32
• Compressor: Standard
• Energy Star: No
• CFMs: 348 / 431 (L / H)
• Includes Heat Mode: Yes
• Heat Type: Electric Resistance Only
• Cooling BTUs (@208V): 11800
• Cooling Amps (@208V): 6.1
• Cooling Watts (@208V): 1060
• Electric Heat Strip Size (kW - @208V): 2.1
• Electric Heating BTUs (@208V): 6300
• Electric Heating Amps (@208V): 10.3
• Electric Heating Watts (@208V): 2150
• Cooling BTUs (@230V): 12000
• Cooling Amps (@230V): 5.5
• Cooling Watts (@230V): 1080
• Electric Heat Strip Size (kW - @230V): 2.5
• Electric Heating BTUs (@230V): 7800
• Electric Heating Amps (@230V): 11.3
• Electric Heating Watts (@230V): 2580
• Vent Location: Front Top
• Make-Up Air: No
• Energy Saver Mode: Yes
• Fan Speeds: 3
• Control Type: Electronic/Digital
• Connectivity: Not WiFi Compatible
• 24 Hour ON/OFF Timer: No
• Remote Control: No
• Fresh Air Intake: Yes
• Sleep Mode: No
• Certifications: ETL / AHRI
• Plug Face (NEMA): 6-10P
• Circuit Breaker Size (Amps): 15
• Cord Length: NA
• Model #: DCP123J25BA
• Voltage Requirements: 208V/230V
