Product Description

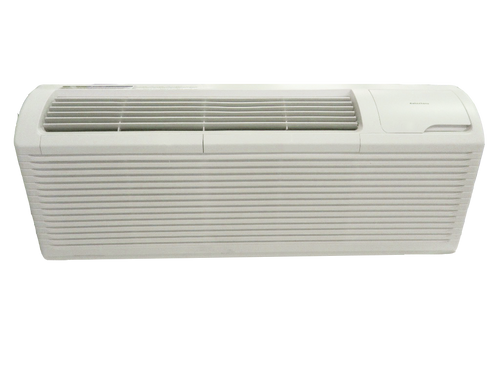

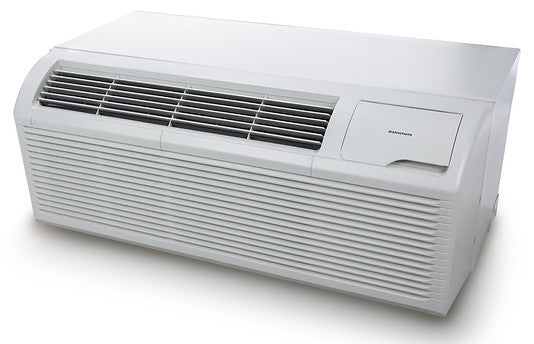

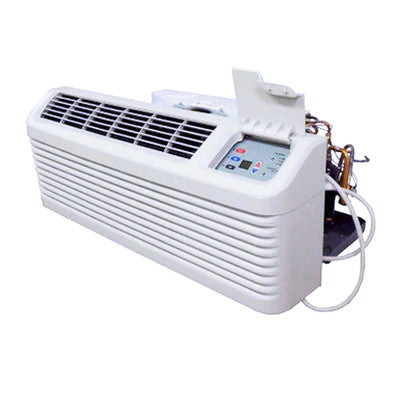

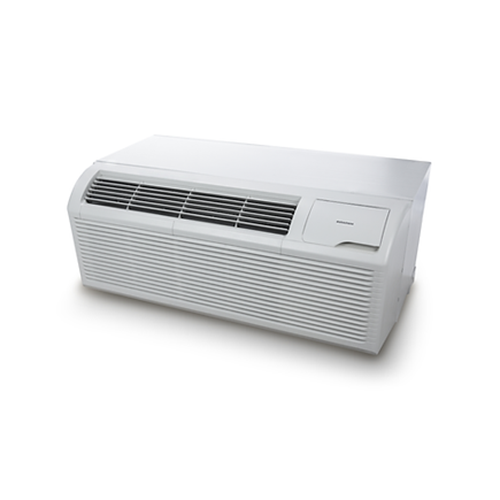

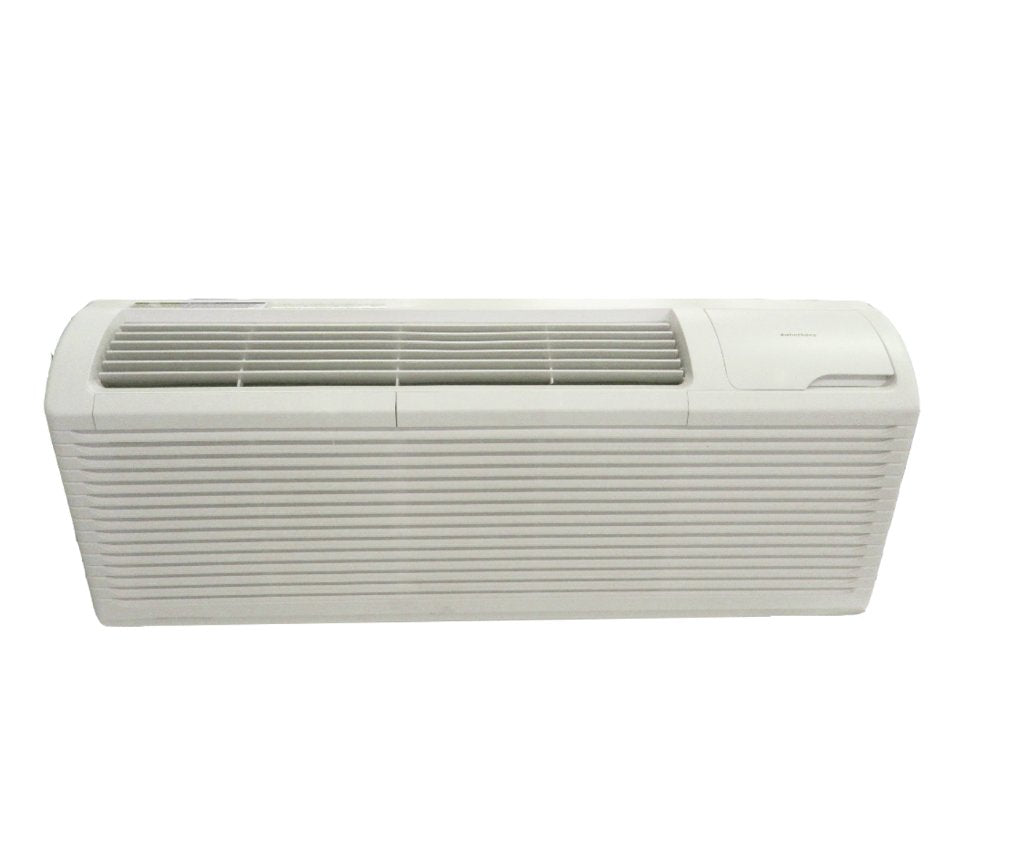

The Amana DCP093J50BA is a 9,000 BTU-class PTAC designed for hotel guest rooms, multi-unit lodging, and commercial applications. Operating on 208/230 V with a 30-amp configuration, it features a 5.0 kW electric-heating element for year-round climate control. It fits the standard 42 x 16 wall sleeve footprint and uses R-32 refrigerant.
- R-32 Refrigerant: 68% lower Global Warming Potential (GWP) and can reduce direct emissions from refrigerant by up to 73.6% as compared to R-410A
- Dual Fan Motors: Allows precise independent fan speed while providing quiet operation.
- LCDI Power Cord Included: No need to match power cord type to unit size.
Product Highlights
This Amana PTAC unit provides reliable, high-quality comfort with energy-efficient operation and easy maintenance, ideal for commercial and residential use.
Product Information
Standard Information
-
Brand: AMANA
-
Manufacturer Part Number: DCP093J50BA
Technical Specifications
-
Voltage: 208 / 230
-
Capacity (BTU/h): 9,200 / 9,000
-
Amps: 22.3 / 20.1
-
Watts: 5,000 / 4,100
-
EER: 11.3
-
CFM (cool/wet coil) High: 430
-
CFM (cool/wet coil) Low: 342
-
CFM (dry) High: 430
-
CFM (dry) Low: 342
-
Vent door CFM: 61.1 / 57.6 / 50.6
-
Dehumidification (pints/hr.): 1.18
-
Heater size (kW): 5.0
-
Heating capacity (BTU/h): 15,000 / 12,200
-
Air Conditioner Type: PTAC
-
Cooling BTU: 9,000 BTU
-
Machine Volts: 208/230
-
Machine Amps: 30 amp
-
Cord Included: Yes
-
Plug Type: NEMA 6-30
-
Controls: Electronic
-
Heat: Electric Heat
-
Fits Standard 42" x 16" Sleeve: Yes
-
Product Length: 42
-
Product Width: 21
-
Product Height: 16
-
Energy Star Certified: No
-
Refrigerant Type: R-32
-
Wi-Fi Compatible: No
-
Remote Control: No
-
Automatic Restart: No
-
Seacoast Protection: No
-
Freeze Protection: No
-
Number of Fan Motors: 2
-
Fan Speeds: 3
-
ADA Compliant: No
-
Energy Efficiency Rating (EER): 11.3
-
Sleeve Included: No
-
Exterior Grille Included: No
-
BTUs Heating (Nominal): 15000
-
Front Cover Included: Yes
-
Maximum Cooling Watts: 790
-
Maximum Cooling Amps: 4.9
-
Maximum Heating Watts: 5000
-
Maximum Heating Amps: 22.3
-
Actual Cooling BTUs @ 208V: 9000
-
Actual Cooling BTUs @ 230V: 9200
-
Actual Heating BTUs Elec @ 208V: 12200
-
Actual Heating BTUs Elec @ 230V: 15000
-
Type of Through-the-Wall: 42" PTAC
-
Sleeve Required for Install: Yes
-
Fits Sleeve Size (in.): 42
-
Compressor: Standard
-
Dehumidification (pts/hr): 1.18
-
CFMs: 342 / 430 (L / H)
-
Includes Heat Mode: Yes
-
Heat Type: Electric Resistance Only
-
Cooling BTUs (@208V): 9000
-
EER (@208V): 11.3
-
Cooling Amps (@208V): 4.9
-
Cooling Watts (@208V): 780
-
Electric Heat Strip Size (kW - @208V): 4.8
-
Electric Heating BTUs (@208V): 12200
-
Electric Heating Amps (@208V): 20.1
-
Electric Heating Watts (@208V): 4100
-
Cooling BTUs (@230V): 9200
-
Cooling Amps (@230V): 4.3
-
Cooling Watts (@230V): 790
-
Electric Heat Strip Size (kW - @230V): 5.0
-
Electric Heating BTUs (@230V): 15000
-
Vent Location: Front Top
-
Make-Up Air: No
-
Energy Saver Mode: Yes
-
Control Type: Electronic/Digital
-
Connectivity: Not WiFi Compatible
-
24 Hour ON/OFF Timer: No
-
Fresh Air Intake: Yes
-
Sleep Mode: No
-
Certifications: ETL / AHRI
-
Plug Face (NEMA): 6-30P
-
Circuit Breaker Size (Amps): 30
-
Cord Length: NA
-
Nominal cooling capacity: ~9,000 9,200 BTU/h
-
Electric-heat capacity: up to ~15,000 BTU (5.0 kW) at 230 V
-
Refrigerant: R-32
-
Fan motors: Dual fan motors
-
Indoor fan operation: 3-speed
-
Amp configuration: 30-amp
