Product Description

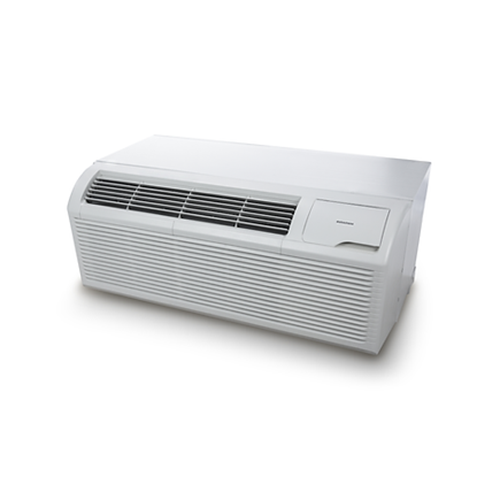

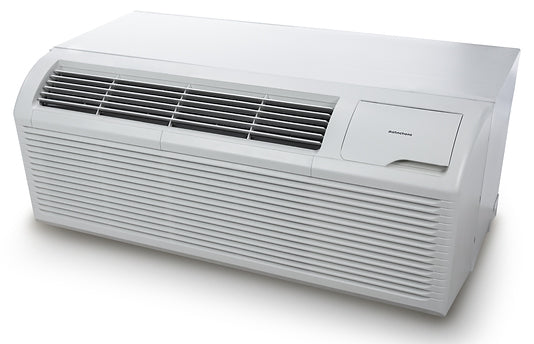

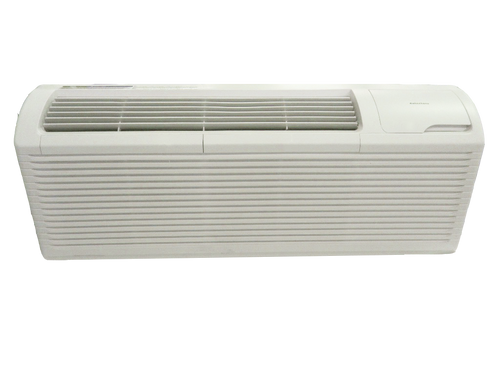

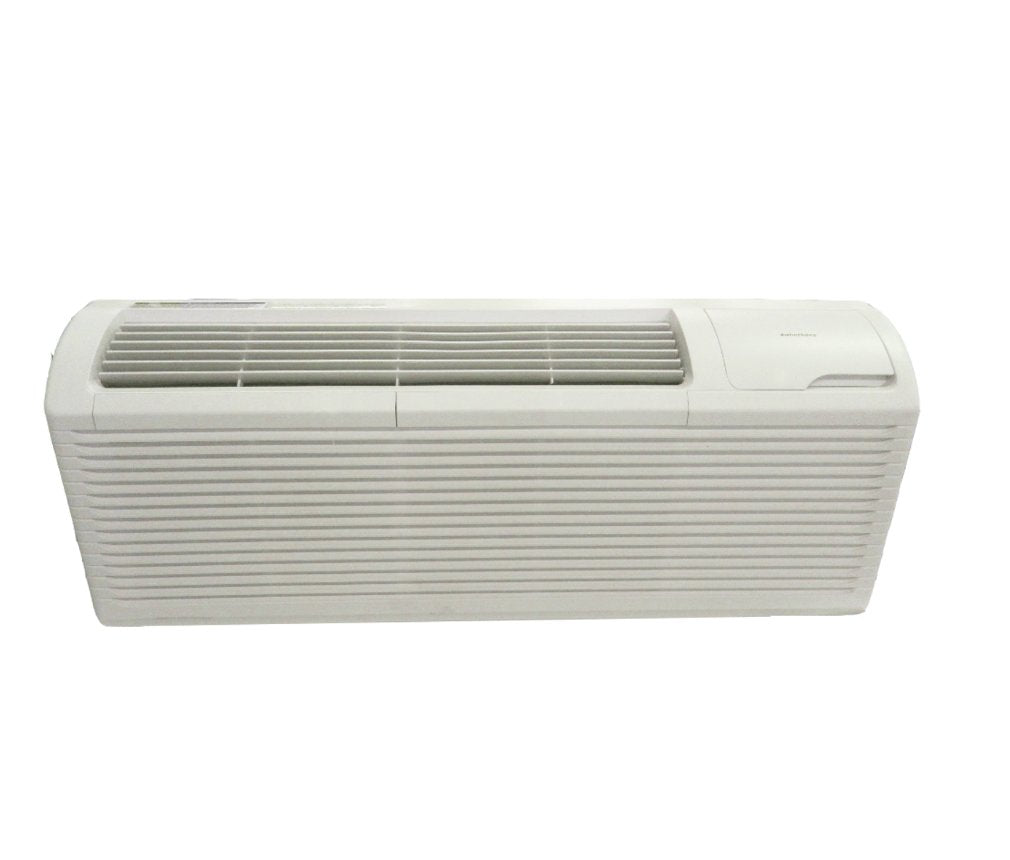

The Amana DCP093J35BA is a 9,000-BTU-class packaged terminal air conditioner (PTAC) with a 3.5 kW electric-resistance heater. Operating on 208/230 V and requiring a 20-amp circuit, it's designed for guest-rooms, extended-stay hotels and multi-unit lodging applications. It features R-32 refrigerant and dual-fan-motor architecture.
- R-32 Refrigerant: 68% lower Global Warming Potential (GWP) and can reduce direct emissions from refrigerant by up to 73.6% as compared to R-410A
- Dual Fan Motors: Allows precise independent fan speed while providing quiet operation.
- LCDI Power Cord Included: No need to match power cord type to unit size.
Product Highlights
This Amana PTAC unit offers comfort, reliability, and serviceability. It integrates seamlessly into existing wall-sleeve installations and allows for efficient room-turn operations in hospitality settings.
Product Information
Standard Information
-
Brand: AMANA
-
Manufacturer Part Number: DCP093J35BA
Technical Specifications
-
Voltage: 208 / 230
-
Capacity (BTU/h): 9,200 / 9,000
-
Amps: 15.3 / 13.7
-
Watts: 3,500 / 2,897
-
EER: 11.3
-
CFM (cool/wet coil) High: 430
-
CFM (cool/wet coil) Low: 342
-
CFM (dry) High: 430
-
CFM (dry) Low: 342
-
Vent door CFM: 61.1 / 57.6 / 50.6
-
Dehumidification (pints/hr.): 1.18
-
Heater size (kW): 3.5
-
Heating capacity (BTU/h): 10,900 / 8,900
-
Air Conditioner Type: PTAC
-
Cooling BTU: 9,000 BTU
-
Machine Volts: 208/230
-
Machine Amps: 20 amp
-
Cord Included: Yes
-
Plug Type: NEMA 6-20
-
Controls: Electronic
-
Heat: Electric Heat
-
Fits Standard 42" x 16" Sleeve: Yes
-
Energy Star Certified: No
-
Refrigerant Type: R-32
-
Wi-Fi Compatible: No
-
Remote Control: No
-
Automatic Restart: No
-
Seacoast Protection: No
-
Freeze Protection: No
-
Number of Fan Motors: 2
-
Fan Speeds: 3
-
ADA Compliant: No
-
Energy Efficiency Rating (EER): 11.3
-
Sleeve Included: No
-
Exterior Grille Included: No
-
BTUs Heating (Nominal): 10900
-
Front Cover Included: Yes
-
Maximum Cooling Watts: 790
-
Maximum Cooling Amps: 4.9
-
Maximum Heating Watts: 3500
-
Maximum Heating Amps: 15.3
-
Actual Cooling BTUs @ 208V: 9000
-
Actual Cooling BTUs @ 230V: 9200
-
Actual Heating BTUs Elec @ 208V: 8900
-
Actual Heating BTUs Elec @ 230V: 10900
-
Type of Through-the-Wall: 42" PTAC
-
Sleeve Required for Install: Yes
-
Fits Sleeve Size (in.): 42
-
Compressor: Standard
-
Dehumidification (pts/hr): 1.18
-
CFMs: 342 / 430 (L / H)
-
Includes Heat Mode: Yes
-
Heat Type: Electric Resistance Only
-
Cooling BTUs (@208V): 9000
-
EER (@208V): 11.3
-
Cooling Amps (@208V): 4.9
-
Cooling Watts (@208V): 780
-
Electric Heat Strip Size (kW - @208V): 2.9
-
Electric Heating BTUs (@208V): 8900
-
Electric Heating Amps (@208V): 13.7
-
Electric Heating Watts (@208V): 2897
-
Cooling BTUs (@230V): 9200
-
Cooling Amps (@230V): 4.3
-
Cooling Watts (@230V): 790
-
Electric Heat Strip Size (kW - @230V): 3.5
-
Electric Heating BTUs (@230V): 10900
-
Electric Heating Amps (@230V): 15.3
-
Electric Heating Watts (@230V): 3500
-
Vent Location: Front Top
-
Make-Up Air: No
-
Energy Saver Mode: Yes
-
Control Type: Electronic/Digital
-
Connectivity: Not WiFi Compatible
-
24 Hour ON/OFF Timer: No
-
Fresh Air Intake: Yes
-
Sleep Mode: No
-
Certifications: ETL / AHRI
-
Voltage Rating: 208/230v
-
Plug Face (NEMA): 6-20P
-
Circuit Breaker Size (Amps): 20
-
Refrigerant: R-32
