Amana DCP093J25BA Distinctions 9k Electric Heat PTAC 208/230V 15 amp replacement DCP093A25AA

Product Description

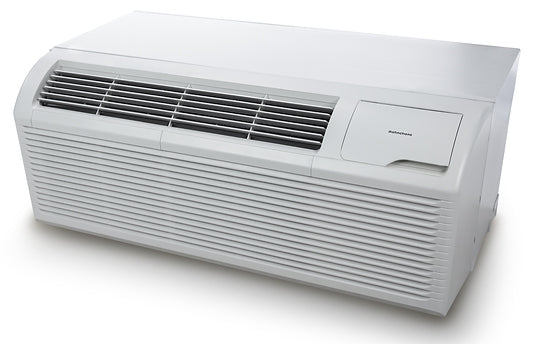

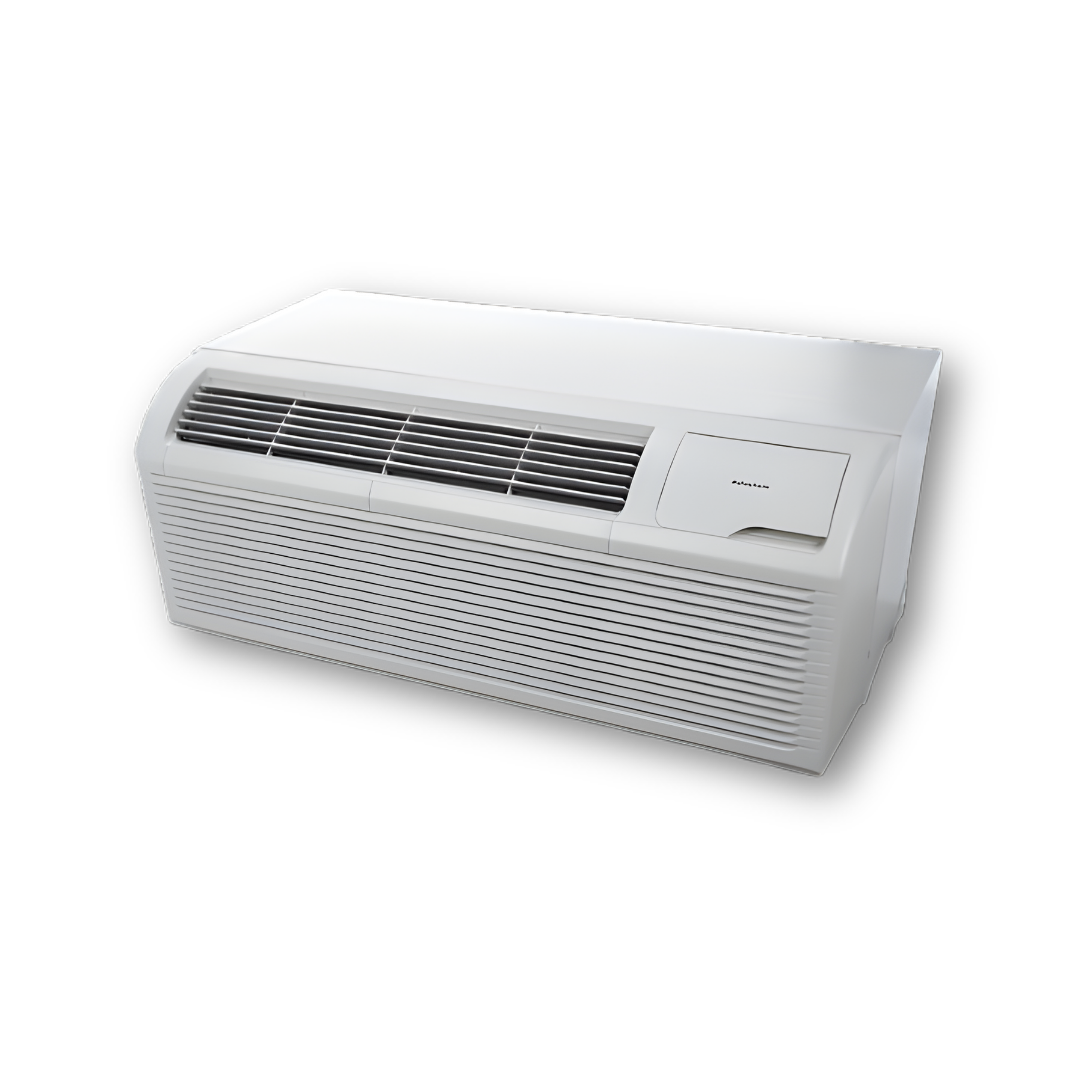

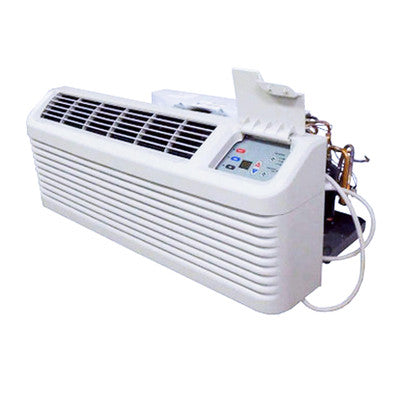

The Amana DCP093J25BA is a PTAC unit designed for small and medium-sized light commercial and residential spaces. This unit provides 9,000 / 9,200 BTUs of cooling power and a 2.5 kW electric heater, with 6,300 / 7,800 BTUs of electric backup heat. It operates on 208/230V and uses R-32 refrigerant.

• R-32 Refrigerant with lower Global Warming Potential (GWP)
• Dual Fan Motors allow precise independent fan speed for quiet operation
• Easy pull-out and washable filters

Product Highlights

This Amana PTAC unit features a condensate dispersion system, 3-speed fan, and is wired thermostat compatible. It replaces Amana Distinctions DCP093A25AA.

Product Information

Standard Information

• Brand: AMANA
• Manufacturer Part Number: DCP093J25BA

Technical Specifications

• Voltage: 208 / 230
• Capacity (BTU/h): 9,200 / 9,000
• Amps: 4.3 / 4.9
• Watts: 790 / 780
• EER: 11.3
• CFM (cool/wet coil) High: 430
• CFM (cool/wet coil) Low: 342
• CFM (dry) High: 430
• CFM (dry) Low: 342
• Vent door CFM: 61.1 / 57.6 / 50.6
• Dehumidification (pints/hr.): 1.18
• Heater size (kW): 2.5
• Heating capacity (BTU/h): 7,800 / 6,300
• Watts (Electric Heat): 2,580 / 2,150
• Amps (Electric Heat): 11.3 / 10.3
• W x H x D (inches): 42 x 16 x 21
• Type of Through-the-Wall: 42" PTAC
• Sleeve Required for Install: Yes
• Fits Sleeve Size (in.): 42
• Refrigerant Type: R32
• Compressor: Standard
• Energy Star: No
• CFMs: 342 / 430 (L / H)
• Includes Heat Mode: Yes
• Heat Type: Electric Resistance Only
• Cooling BTUs (@208V): 9000
• Cooling Amps (@208V): 4.9
• Cooling Watts (@208V): 780
• Electric Heat Strip Size (kW - @208V): 2.1
• Electric Heating BTUs (@208V): 6300
• Electric Heating Amps (@208V): 10.3
• Electric Heating Watts (@208V): 2150
• Cooling BTUs (@230V): 9200
• Cooling Amps (@230V): 4.3
• Cooling Watts (@230V): 790
• Electric Heat Strip Size (kW - @230V): 2.5
• Electric Heating BTUs (@230V): 7800
• Electric Heating Amps (@230V): 11.3
• Electric Heating Watts (@230V): 2580
• Vent Location: Front Top
• Make-Up Air: No
• Energy Saver Mode: Yes
• Fan Speeds: 3
• Control Type: Electronic/Digital
• Connectivity: Not WiFi Compatible
• 24 Hour ON/OFF Timer: No
• Remote Control: No
• Fresh Air Intake: Yes
• Sleep Mode: No
• Certifications: ETL / AHRI
• Plug Face (NEMA): 6-15P
• Circuit Breaker Size (Amps): 15
• Cord Length: NA
• Brand: Amana
• Model #: DCP093J25BA
• Input Voltage: 208-230V
