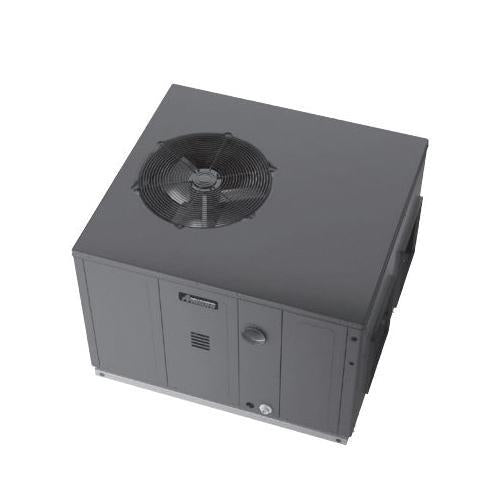

Amana APGM54810041 Packaged Gas/Electric/Dual 15.2 SEER2 (4 Ton)

Product Description

Amana APGM54810041 is a packaged gas/electric/dual outdoor unit with 15.2 SEER2 efficiency and two-stage cooling for ducted downflow or horizontal installation. The 4 ton system uses R-410A refrigerant and a scroll compressor paired with a variable-speed ECM blower, providing a rated cooling capacity of 46,000 BTU/hr and rated heating capacity of 80,000 BTU/hr. The unit is designed for multi-position installation and includes safety and ignition controls.

• Two-stage scroll compressor and two-stage gas valve for staged cooling and heating control
• Variable-speed ECM indoor blower with high cooling airflow ~1300 CFM and multi-position (downflow/horizontal) configuration
• 15.2 SEER2 efficiency, R-410A refrigerant, rated cooling 46,000 BTU/hr and rated heating 80,000 BTU/hr

Product Highlights

Packaged gas/electric dual unit, 15.2 SEER2, two-stage cooling, variable-speed ECM, 4 ton, R-410A

Product Information

Standard Information

• Brand: AMANA
• Manufacturer Part Number: APGM54810041

Technical Specifications

• Brand: Amana
• MPN: APGM54810041
• Model/Series: APGM5
• Product Type: Packaged Gas/Electric/Dual
• Unit Type: Outdoor
• SEER: 15.2 SEER2
• AFUE: 81%
• Tonnage: 4.0 ton
• Cooling Capacity Rated (BTU/hr): 46,000
• Cooling Capacity Nominal (BTU/hr): 48,000
• Cooling Capacity Sensible (BTU/hr): 34,500
• Heating Capacity Rated (BTU/hr): 80,000
• Refrigerant: R-410A
• Compressor Type: Scroll
• Compressor Stages: Two stage
• Motor Speed Type: Variable Speed ECM
• Airflow (High Cooling CFM): 1300 CFM
• Input Voltage: 208/230 V
• Power Frequency: 60 Hz
• Power Phase: Single phase
• Min. Circuit Amps: 33.7 A
• Compressor RLA: 20.4 A
• Compressor LRA: 122.1 A
• Indoor Blower FLA: 6.8 A
• Max Overcurrent Protection: 50 A
• EER: 11.2
• Sound Pressure (High) - Cooling: 78 dBA
• Unit Dimensions (W x H x D): 47 in x 40 in x 51 in
• Unit Weight (lbs): 490 lb
• Operating Temperature Range: 35 to 65 deg F
• Material: Steel (powder-painted/zinc-coated finish)
• Evaporator Coil: All-aluminum evaporator coil (2- to 4-ton units)
• Heat Exchanger: Heavy-duty stainless-steel heat exchanger
• Certifications: AHRI certified; ETL listed
• Prop65 Label Required: True
