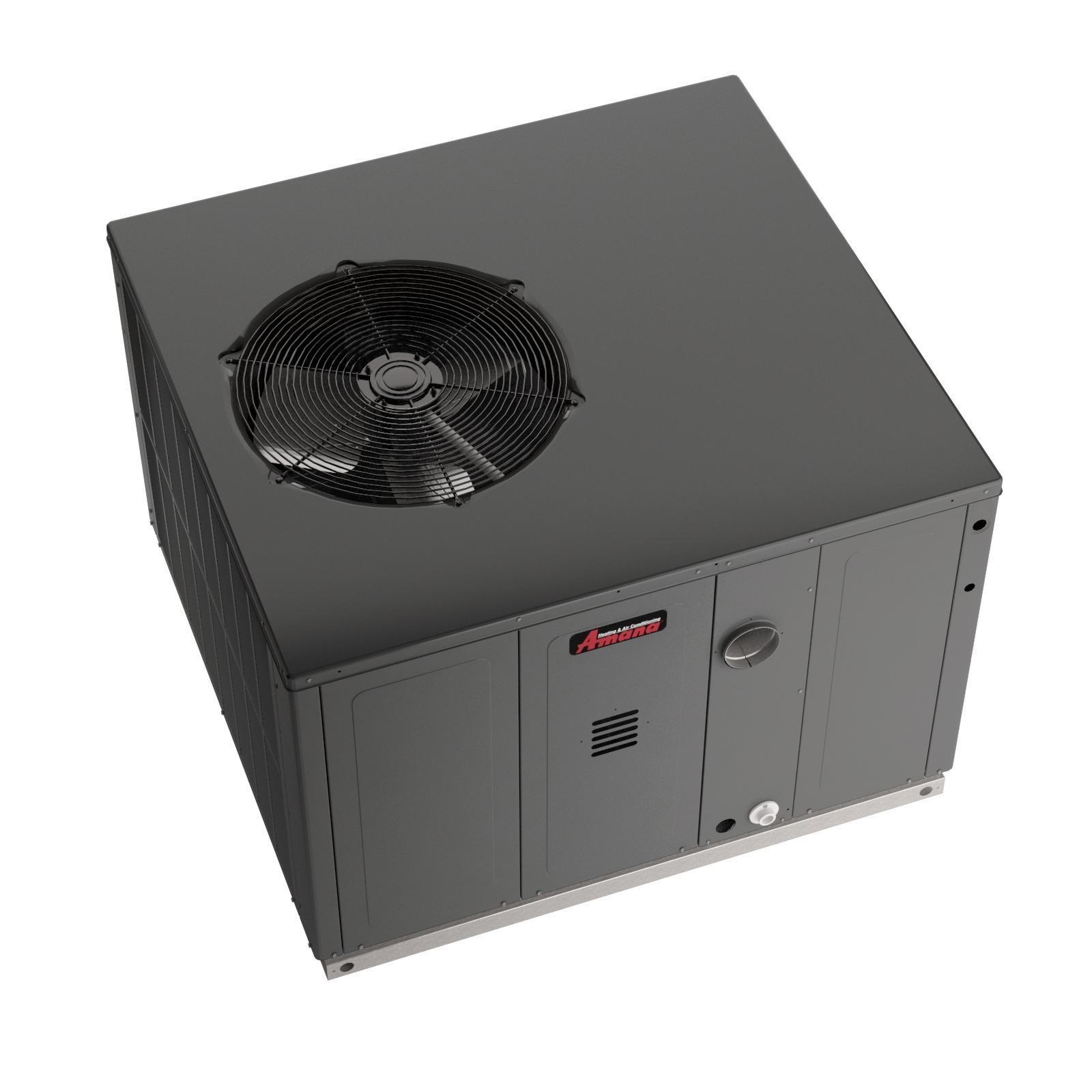

Amana APGM34808041 Packaged Gas/Electric Dual 13.4 SEER2 208/230 V (Downflow/Horizontal) APGM34808041AA

Product Description

Amana APGM34808041 is a 4-ton packaged gas/electric rooftop unit with 13.4 SEER2 efficiency designed for downflow or horizontal installation. The unit uses a single-stage scroll compressor and a multi-speed ECM blower motor and operates on R-410A refrigerant; rated cooling capacity is 46,250 Btu/h and rated heating capacity is 60,000 Btu/h. Electrical requirements are 208/230 V, single-phase, 60 Hz with a minimum circuit amp of 32.3 A. It includes a heavy-duty stainless-steel heat exchanger and direct spark ignition with microprocessor-based controls and self-diagnostics.

• 13.4 SEER2 efficiency; rated cooling 46,250 Btu/h and heating 60,000 Btu/h; R-410A refrigerant
• Single-stage scroll compressor with multi-speed ECM blower; airflow 1,525 cfm (high cooling)
• 208/230 V, 1 phase, 60 Hz electrical; min circuit amps 32.3 A; 50 A max overcurrent protection

Product Highlights

4-ton rooftop packaged gas/electric unit; single-stage scroll; direct spark ignition

Product Information

Standard Information

• Brand: AMANA
• Manufacturer Part Number: APGM34808041
• Country of Origin: USA

Technical Specifications

• Brand: Amana
• MPN: APGM34808041
• Series: APGM3
• Model Family: APGM3_410
• Product Type: Packaged gas/electric unit (rooftop)
• Configuration: Downflow/Horizontal, Multi-position
• SEER2 Rating: 13.4 SEER2
• EER Rating: 10.6 EER
• Tonnage: 4 tons
• Cooling Capacity (Rated, BTU/h): 46250
• Cooling Capacity (Nominal, Btu/h): 48000 Btu/H
• Heating Capacity (Rated, BTU/h): 60000
• AFUE: 81%
• Refrigerant Type: R-410A
• Compressor Type: Scroll
• Compressor Stages: Single Stage
• Blower Motor: Multi-speed ECM
• Airflow Rate (High) - Cooling: 1525 cfm
• Input Voltage: 208/230 V
• Phase: 1
• Frequency: 60 Hz
• Min. Circuit Amps: 32.3 A
• Max Overcurrent Protection: 50 A
• Dimensions (L x W x H): 47 in x 51 in x 40 in
• Unit Weight: 449 lb
• Factory Std. Refrigerant Charge: 107 oz
• Condensate Drain Outlet: 3/4 in FNPT
• Evaporator Coil: All-aluminum
• Heat Exchanger: Heavy-duty stainless-steel
• Ignition and Controls: Direct spark ignition with microprocessor-based control and self-diagnostics
• Sound Pressure (High) - Cooling: 79 dBA
• Country of Origin: USA
• Certifications: AHRI Certified; ETL Listed
• Prop65 Label Required: True
