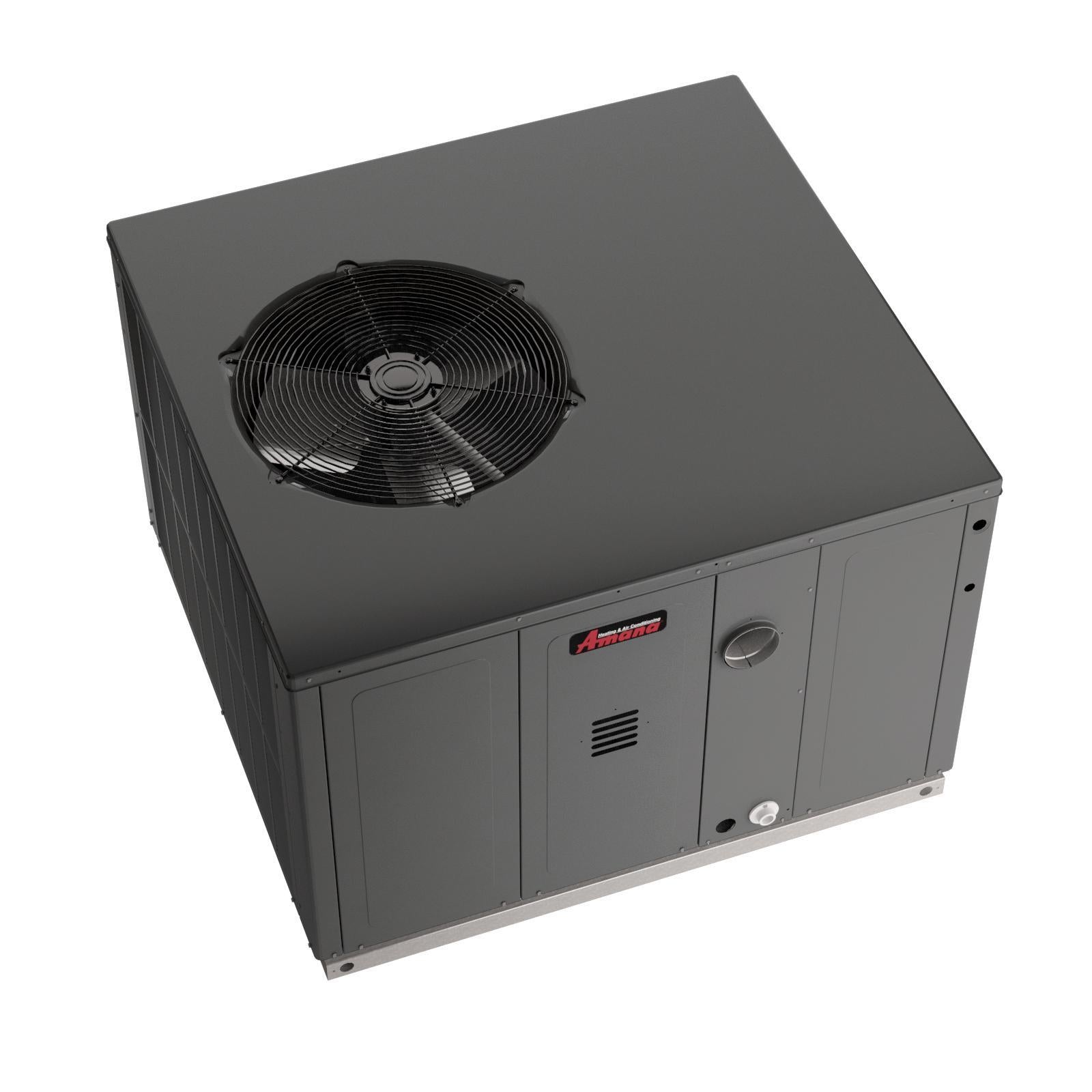

Amana APGM33608041 Packaged gas/electric dual 3 ton downflow/horizontal

Product Description

The Amana APGM33608041 is a packaged gas/electric dual unit designed for downflow or horizontal installation, providing nominal 3 ton capacity with 13.4 SEER2 efficiency. It uses an energy-efficient scroll compressor with single-stage cooling and a multi-speed ECM blower, operates on 208/230 V single-phase power, and employs R-410A refrigerant. Rated cooling capacity is 34,200 Btu/hr and rated heating capacity is 60,000 Btu/hr.

• 13.4 SEER2 efficiency; rated cooling 34,200 Btu/hr and rated heating 60,000 Btu/hr; nominal 3 ton capacity
• Scroll compressor, single-stage cooling, multi-speed ECM indoor blower; direct spark ignition with microprocessor controls
• Designed for 208/230 V, 1 phase, 60 Hz operation; minimum circuit amps 22.8 A; factory refrigerant charge 92 oz R-410A

Product Highlights

Packaged gas/electric unit, 3 ton, downflow/horizontal configuration, 13.4 SEER2, R-410A, 208/230 V single phase

Product Information

Standard Information

• Brand: AMANA
• Manufacturer Part Number: APGM33608041

Technical Specifications

• Brand: Amana
• Manufacturer Part Number: APGM33608041
• Model Series: APGM3 (APGM3_410)
• Product Type: Packaged gas/electric dual unit
• Tonnage: 3.0
• Nominal Cooling Capacity: 36000 Btu/hr
• Rated Cooling Capacity: 34200 Btu/hr
• Rated Heating Capacity: 60000 Btu/hr
• Input BTU Rating: 80000 Btu/hr
• Output BTU Rating: 64800 Btu/hr
• SEER2: 13.4
• EER: 10.6
• AFUE: 81 %
• Refrigerant Type: R-410A
• Factory Refrigerant Charge: 92 oz
• Compressor Type: Scroll
• Compressor Stages: Single stage
• Motor Type: Multi-speed ECM
• Airflow Rate High Cooling: 1150 CFM
• CFM Rating (alternate): 1200 CFM
• Coil Material: All-aluminum evaporator coil
• Evaporator Coil Face Area: 11.13 sq-ft
• Coil Rows: 4-row evaporator coil
• Burners: 4
• Ignition: Direct spark ignition with microprocessor-based control and self-diagnostics
• Sound Pressure High (Cooling): 78 dBA
• Input Voltage: 208/230 V
• Phase: 1
• Frequency: 60 Hz
• Min. Circuit Amps: 22.8 A
• Max Overcurrent Protection: 35 A
• Motor Horsepower: 1/2 hp (blower motor reported)
• Blower Wheel Size: 10 in diameter x 9 in width
• Drain Connection: 3/4 in FNPT
• Operating Temperature Range: 30 to 60 deg F
• Finish: Powder-painted
• Dimensions (H x W x D): 32 in x 47 in x 51 in
• Weight: 415 lb
• Installation Configuration: Downflow/Horizontal
• Compliance / Notes: Meets 2023 M1 test standards; Complies with California Low NOx standards (40 ng/J NOx) as reported
• Prop 65 Label Required: Yes
