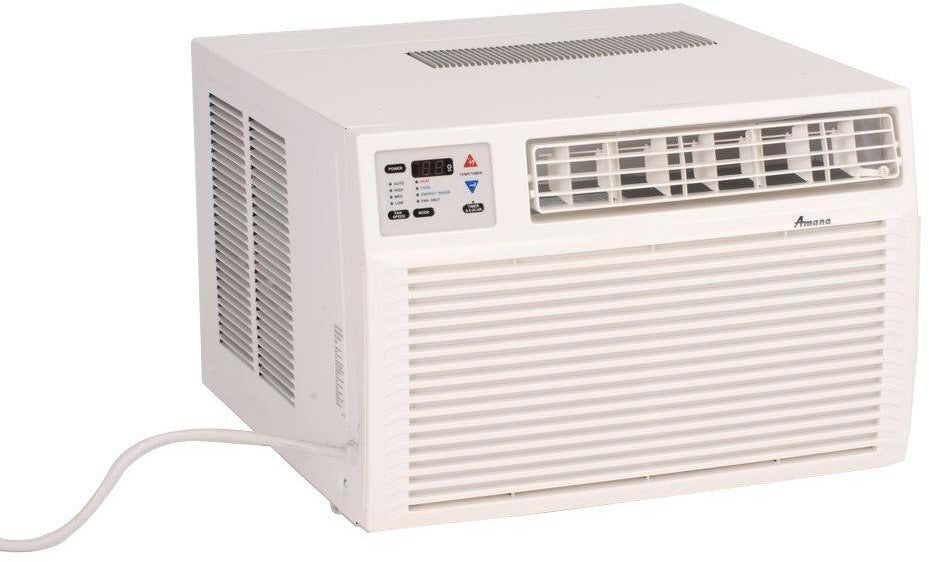

Amana AH123G35AX WRAC Heat Pump 230V 12K HP Medium Room

Product Description

The Amana AH123G35AX WRAC Heat Pump is a commercial-grade unit designed for efficient heating and cooling. Operating at 208 to 230 V, it delivers 11600 Btu/hr cooling and 10700 Btu/hr heating, featuring a 9.9 EER rating and using R-410A refrigerant. This through-the-wall unit is suitable for various commercial applications, including hospitality and assisted living, providing reliable climate control. Its compact dimensions of 15-3/8 in H x 22-5/8 in W x 24 in D allow for versatile installation.

• Features a 3.5 kW heater capacity and a 9.9 EER for efficient operation.
• Equipped with a slide-out chassis and easy-access filter for simplified installation and maintenance.
• Includes an electronic touch pad with remote control and ball bearing fan motors for quiet, reliable performance.

Product Highlights

Factory run-tested for high reliability and dependability, ensuring consistent performance.

Product Information

Standard Information

• Brand: AMANA
• Manufacturer Part Number: AH123G35AX
• Country of Origin: China

Technical Specifications

• Manufacturer Part Number: AH123G35AX
• Brand: Amana
• Product Category: PTAC
• Product Class: WRAC Heat Pump
• System Family: PTAC
• Function Category: Heat Pump
• Product Type: Equipment
• Unit Type: Indoor
• Market Type: Commercial
• Product Family: AH12
• Produced in US: No
• Proposition 65 Label: Yes
• Series: AH Series
• BTU Rating: 11600 Btu/hr Cooling, 10700 Btu/hr Heating
• CFM Rating: 280 cfm
• Voltage Rating: 208 to 230 V
• Power Rating: 2770 to 3580 W
• Amperage Rating: 5.1 to 5.3 A Cooling, 14.6 to 16 A Electric Heater
• Frequency Rating: 60 Hz
• Phase: 1 ph
• EER Rating: 9.9
• Refrigerant Type: R-410A
• Coverage Area: 600 sq ft
• Room Size: Medium
• Rough Opening (Double Hung Windows): 16.25-in H x 27 to 39-in W
• Rough Opening (Through-the-Wall): 16-in H x 22.625-in W
• Installation Type: Window / Wall
• Chassis Type: Slide Out
• Control Type: Digital
• Remote Control Included: Yes
• Plug Type: 6-20P
• WiFi: No
• Remote Monitoring: No
• Wall Sleeve Included: Yes
• Heat Type: Heat Pump with Electric Heat Backup
• Window Type: Standard
• Energy Star Rated: No
• ADA Compliant: No
• CEER: 9.8
• Dehumidification Capacity: 2.5 Pts/Hr
• COP: 2.6 / 2.6
• Thermostatic Drain Valve: Yes
• Power Cord Details: 4.0 Ft. LCDI Power Cord; Perpendicular Plug; 20-Amp
• Agency Approval: U.L Listed; USA and Canada
• Fan Speeds: 3 Speeds - High, Medium and Low
• Fan Only Mode: Yes - High, Medium and Low
• Condensate Drain: Yes - Condensate Drain Spout On The Wall Sleeve
• Window Kit Included: Yes - Included
• Discharge Air: Top
• Auto Air Swing: No
• Filter Type: Side Pull-Out
• Overall Depth with Front: 26 3/4"
• Max Wall Thickness: 5 4/5" Max.
• Chassis Weight: 96.0 Lbs.
