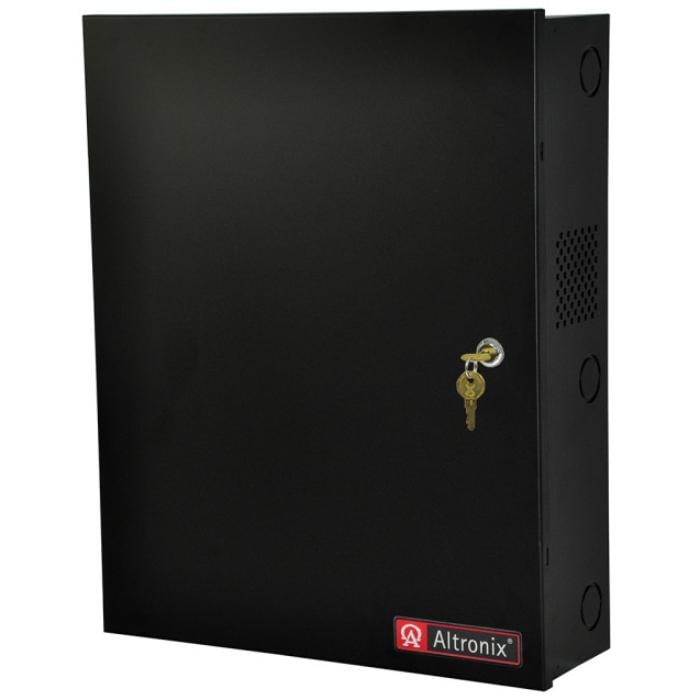

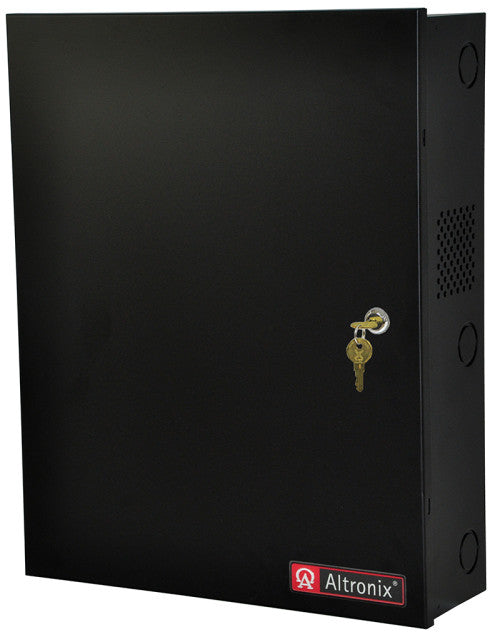

Altronix T1PDK7F24 Trove1PD1 with eFlow104NB 24VDC 10A (24-Door)

Product Description

Altronix T1PDK7F24 is a 24-door PDK access and power integration kit that includes a Trove1 enclosure, TPD1 backplane and an eFlow104NB 24VDC 10A power supply/charger. The kit supports up to three PDK PM-07-EIOE-E modules for up to 24 doors and provides filtered and regulated 24VDC output with an auxiliary 1A class 2 unswitched output, battery charging for sealed lead acid/gel batteries, and supervised AC and battery contacts.

• Includes Trove1 enclosure, TPD1 backplane and one eFlow104NB 24VDC 10A power supply/charger
• Supports up to three PDK PM-07-EIOE-E modules to provide power and distribution for up to 24 doors
• Filtered and regulated 24VDC output, 1A auxiliary output, battery charging, supervised fire alarm disconnect and Form C AC/battery supervision

Product Highlights

24-door access and power integration kit with Trove1 enclosure and eFlow104NB 24VDC 10A power supply; supports battery charging, supervised disconnects, instantaneous AC failover and LinQ2 readiness.

Product Information

Standard Information

• Brand: ALTRONIX
• Manufacturer Part Number: T1PDK7F24
• Country of Origin: United States

Technical Specifications

• Brand: Altronix
• MPN: T1PDK7F24
• Product Line: Trove1
• Kit Model: T1PDK7F24
• Included Sub-Assemblies: eFlow104NB (1), Trove1 enclosure (1), TPD1 backplane (1)
• Accommodates Modules: Up to three PDK PM-07-EIOE-E modules (supports up to 24 doors)
• Input Voltage: 120VAC, 60Hz, 4.5A max.
• Main Fuse: 6.5A / 250V
• Output Voltage: 24VDC
• Output Current: 10A continuous
• Auxiliary Output: Class 2 power-limited 1A (unswitched)
• Other Output Features: Filtered and regulated, overvoltage protection
• Battery Type (charging): Sealed lead acid or gel
• Battery Fuse Rating: 10A / 32VDC
• Failover: Instantaneous upon AC loss
• Fire Alarm Disconnect: Supervised latching or non-latching; EOL: 10K resistor
• Supervision Contacts: AC Failure: Form C; Battery: Form C
• Low DC Power Shutdown: Shuts down DC outputs if battery voltage drops below 70-75% (24V units)
• Indicators: LED for AC input and DC output status
• Operating Temperature: 0 C to 49 C (32 F to 120 F)
• Storage Temperature: -20 C to 70 C (-4 F to 158 F)
• Relative Humidity: 85% +/- 5%
• BTU per Hour (approx.): 128 BTU/Hr (24VDC)
• Compliance: UL listed sub-assemblies, CE, RoHS; TAA, NDAA, BAA compliant
• LinQ2 Ready: Yes
• Dimensions: 18 in W x 14.5 in L x 4.62 in H (457.2 mm x 368.3 mm x 118 mm)
• Product Weight: 15.5 lbs (7 kg)
• Country of Origin: United States
• UPC: 782239958511
• Number of Batteries Supported: 2
• Package Contents: Access and power integration enclosure, Trove1 backplane, single output 24VDC 10A power supply/charger
