Product Description

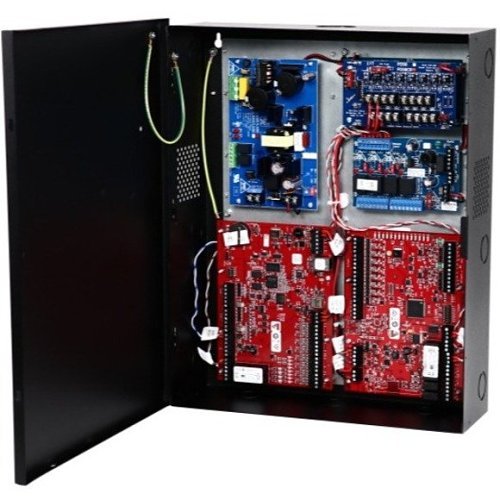

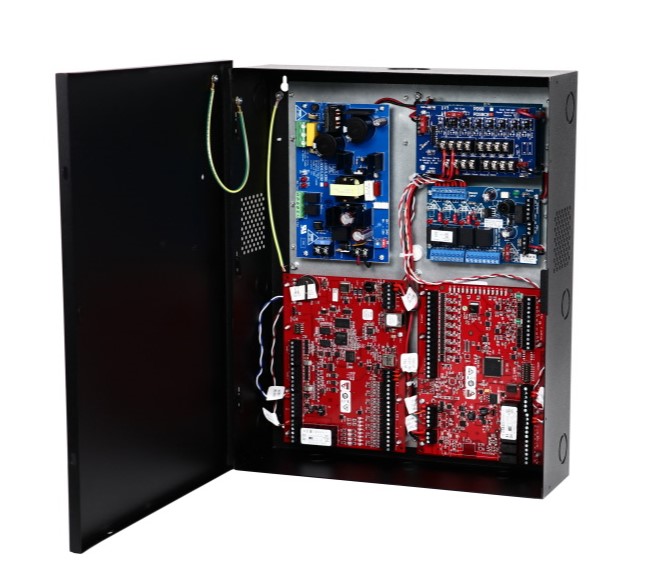

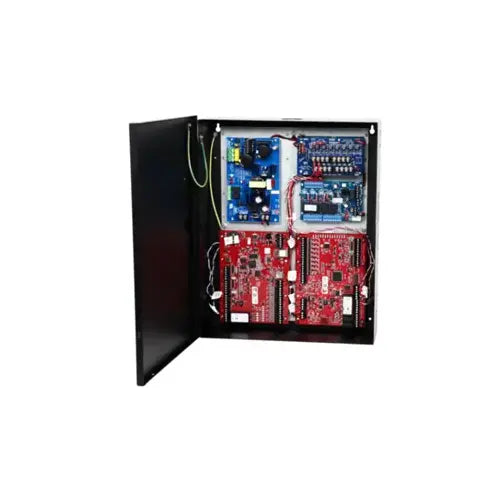

The Altronix T1M1LCK1D is a Trove1 series 4-door power supply kit that provides selectable 12 VDC (4 A) or 24 VDC (3 A) outputs with PTC-protected distribution. The kit includes power distribution, wire magnets and pre-configured wire assemblies on a 16 AWG galvanized steel backplane and an enclosure that accommodates up to two 12 VDC/7 AH batteries. It accepts 115 VAC input via the AL400ULXB2 sub-assembly.
- Selectable dual-voltage outputs: 12 VDC at 4 A or 24 VDC at 3 A with PTC-protected outputs
- Includes AL400ULXB2 power supply/charger, PDS8CB power distribution, VR6 regulator, ACM4CB access power controller, RSB1 switch and TM1 backplane with factory-installed wire management
- Wall-mount Trove1 enclosure with 16 AWG galvanized steel backplane, tamper/cam lock features and capacity for two 12 VDC/7 AH batteries
Product Highlights
4-door access power kit with dual-voltage selectable outputs, PTC-protected distribution, and enclosure for two 12 VDC/7 AH batteries
Product Information
Standard Information
-
Brand: ALTRONIX
-
Manufacturer Part Number: T1M1LCK1D
-
Country of Origin: United States
Technical Specifications
-
Brand: Altronix
-
Manufacturer: Altronix Corporation
-
Manufacturer Part Number: T1M1LCK1D
-
ADI Part Number: AX-T1M1LCK1D
-
Model: T1M1LCK1D
-
Product Line: Trove1
-
Product Type: Power supply kit / access power integration kit
-
Included sub-assemblies: AL400ULXB2, PDS8CB, VR6, ACM4CB, RSB1, Trove1 enclosure, TM1 backplane
-
Input Voltage: 115 VAC, 60 Hz
-
Input Current (max): 3.5 A (AL400ULXB2)
-
Input Fuse: 5 A / 250 V (AL400ULXB2)
-
Output Voltage: Selectable 12 V DC or 24 V DC
-
Output Current: 12 V DC at 4 A; 24 V DC at 3 A
-
Output Protection: PTC-protected outputs; PDS8CB PTCs 2.5 A (each); PDS8CB input PTC 9 A
-
VR6 Output: 12 V DC, 6 A continuous (from 24 VDC input)
-
ACM4CB Outputs: Four independently controlled 2.5 A outputs plus four auxiliary unswitched outputs (PTCs 2.5 A)
-
Battery Capacity: Accommodates up to two 12 VDC/7 AH batteries in enclosure; larger battery capacity supported with separate enclosure
-
Battery Type: Sealed lead acid or gel
-
Battery Fuse Rating: 15 A / 32 V (battery fuse)
-
Failover: Instantaneous upon AC loss (AL400ULXB2)
-
Supervision: AC failure and battery supervision via Form C contacts
-

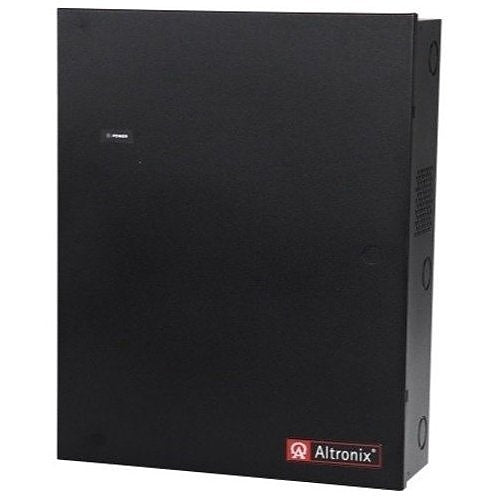

Enclosure: Wall-mount Trove1 enclosure with cam lock and tamper switch; 1", 3/4" and 1 1/2" knockouts
-
Enclosure Backplane: 16 AWG galvanized steel backplane
-
Operating Temperature: 0 C to 49 C (32 F to 120 F)
-
Storage Temperature: -20 C to 70 C (-4 F to 158 F)
-
Relative Humidity: 85% ± 5%
-
BTU/hr (approx): 90 BTU/hr
-
Mounting Type: Wall mount (indoor)
-
Certifications: UL listed sub-assemblies, CE, RoHS; TAA, NDAA, BAA compliant
