Altronix T1M1CK1D 4-Door Altronix/Mercury access and power pre-wired integration kit dual voltage 12V/24V (4-door)

Product Description

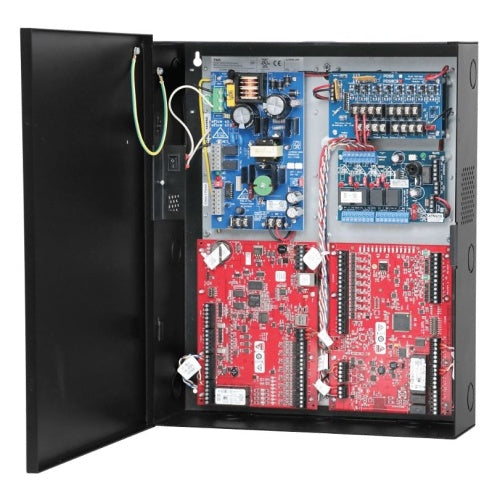

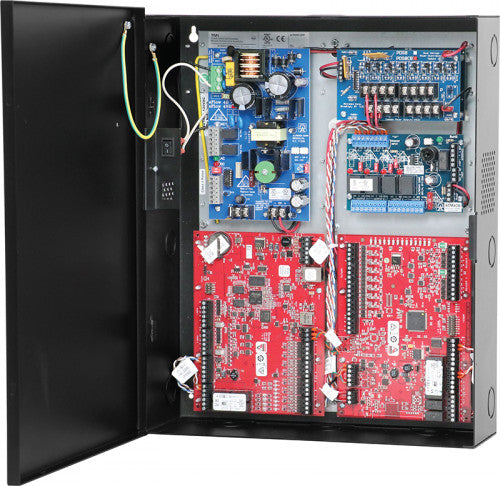

Altronix T1M1CK1D is a 4-door access and power pre-wired integration kit that includes Trove1M1 with AL400ULXB2, ACM4CB, PDS8CB, VR6 and RSB1. The kit provides dual voltage outputs (12 VDC and 24 VDC), integrated power distribution with factory-installed wire management and terminal blocks for Mercury hardware, and supports one intelligent dual reader controller plus one dual reader interface module.

• Includes Trove1M1 enclosure with AL400ULXB2, ACM4CB, PDS8CB, VR6 and RSB1 and factory-installed wire harnesses and terminal blocks
• Provides dual voltage outputs (24 VDC and 12 VDC); VR6: 12 VDC at 6 A continuous; 24 VDC output rated 4 A continuous; PDS8CB: eight selectable PTC-protected outputs
• Accommodates Mercury controllers (1-LP1502 / LP4502 and 1-MR52), 16 AWG galvanized steel backplane, AC/battery supervision, and space for up to two 12 VDC/7 AH batteries

Product Highlights

Pre-wired 4-door Trove1M1 integration kit with dual 12 V/24 V outputs, built-in power distribution and Mercury controller compatibility

Product Information

Standard Information

• Brand: ALTRONIX
• Manufacturer Part Number: T1M1CK1D
• Country of Origin: United States

Technical Specifications

• Brand: Altronix
• Manufacturer Part Number: T1M1CK1D
• Model: T1M1CK1D
• Product Line: Trove1
• Kit Description: 4-Door Altronix/Mercury access and power integration wired kit - Trove1M1 with AL400ULXB2, ACM4CB, PDS8CB, VR6, RSB1
• Included Sub-assemblies: AL400ULXB2; ACM4CB; PDS8CB; VR6; RSB1
• Accommodates Controllers: 1-LP1502 / LP4502 and 1-MR52
• Input Voltage: 115 VAC
• Output Voltage: 12 VDC and 24 VDC
• 24V Output Current: 4 A continuous
• 12V Output Current: 6 A continuous
• PDS8CB Outputs: Eight selectable power outputs; individual outputs serviceable/off; PTC rating 2.5 A (input PTC 9 A)
• Battery Capacity: Enclosure accommodates up to two 12 VDC/7 AH batteries
• Battery Type: Sealed lead acid or gel
• Supervision: AC fail supervision; battery fail and battery presence; Form C contacts for AC and battery
• Backplane: 16 AWG galvanized steel
• Enclosure: Wall mount enclosure for indoor use; accommodates up to two 12 VDC/7 AH batteries; 1", 3/4" and 1 1/2" knockouts
• Knockout Configuration: One 1-1/2" conduit knockout; nine double knockouts for 3/4" and 1" conduit
• Operating Temperature: 32°F to 120°F (0°C to 49°C)
• Storage Temperature: -4°F to 158°F (-20°C to 70°C)
• Relative Humidity: 85% ± 5%
• Dimensions: 14.5 in W x 18 in H x 4.62 in D (368.3 mm x 457.2 mm x 118 mm)
• Weight: 18 lb
• Certifications: UL listed sub-assemblies; CE compliant; TAA, NDAA, BAA compliant
• UPC: 782239966653
• ADI Part Number: AX-T1M1CK1D
• Country of Origin: United States
