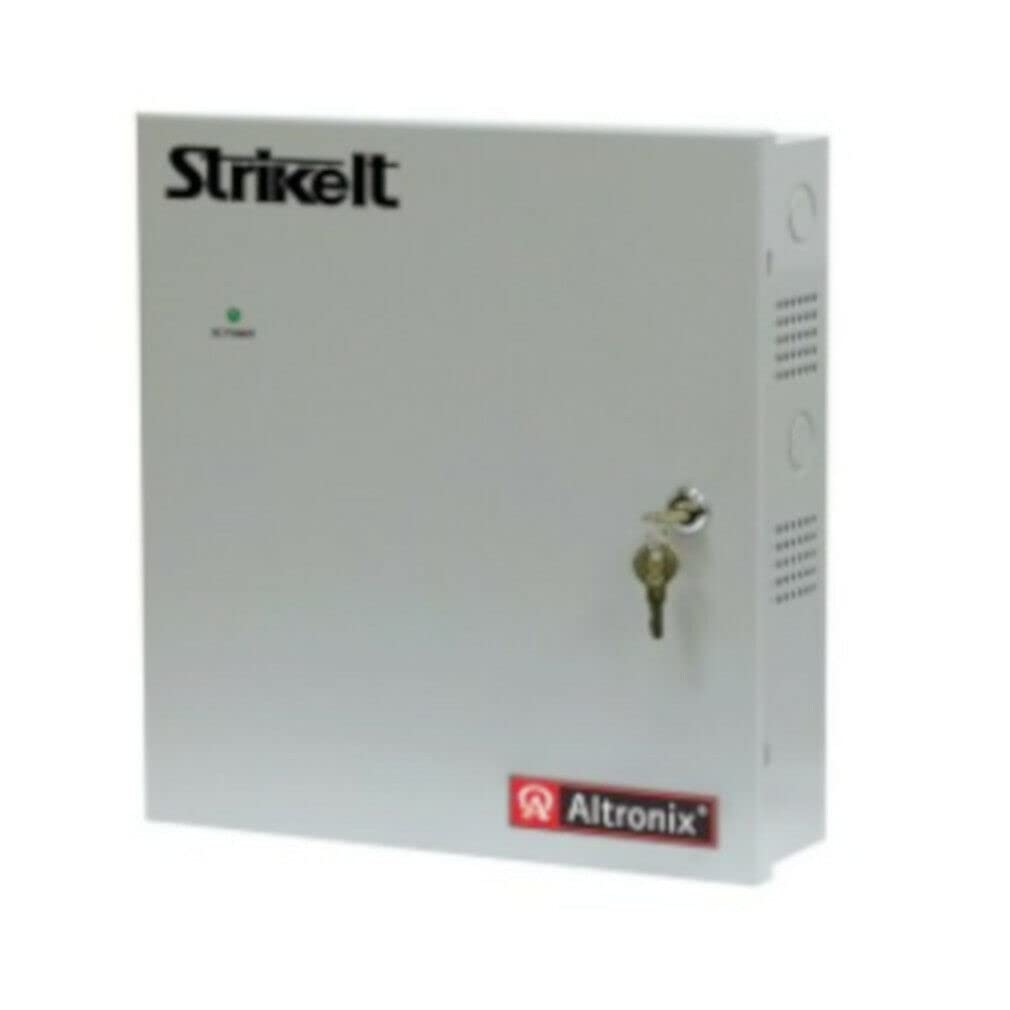

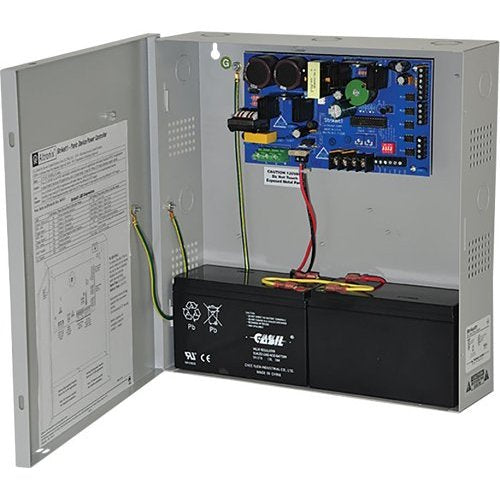

Altronix STRIKEIT1 Panic Device Power Controller 24VDC at 16A In-Rush BC300 Enclosure 115VAC

Product Description

The Altronix STRIKEIT1 Panic Device Power Controller is engineered to manage up to two 24VDC panic hardware devices. Ideal for high-demand environments, this controller accommodates the substantial current surge required by panic hardware locking devices. It can operate two doors simultaneously or manage two single doors independently.

• Adjustable relock delay timer for each lock output.
• Features follower relays and configurable FACP interface to suit varying operational requirements.
• Equipped with LED indicators for system monitoring and status verification.

Product Highlights

This device is equipped with auxiliary outputs for additional accessory operation, enhancing its utility in complex security setups. Its intelligent design prevents short circuits, ensuring reliable operation and longevity.

Product Information

Standard Information

• Brand: Altronix
• Manufacturer: Altronix Corporation
• Input Voltage: 115VAC
• Output Voltage: 24VDC
• Output Current: Up to 16A in-rush

Technical Specifications

• Enclosure Dimensions: Height 13.5 inches, Width 13 inches, Depth 3.3 inches
• Input Frequency: 60 Hz
• Standards: UL294, cUL, MEA, CSFM
• Warranty: Lifetime limited warranty
