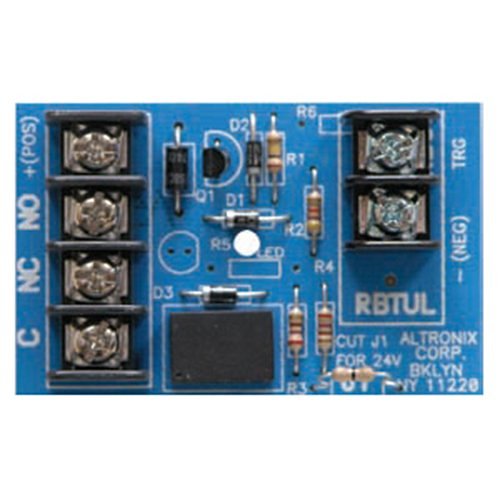

Altronix RBUL Ultra-Sensitive Relay Module 12/24VDC SPDT 1A 28VDC

Product Description

The Altronix RBUL Relay Module provides reliable and ultra-sensitive switching performance. Ideal for continuous duty applications, this module operates on both 12VDC and 24VDC to accommodate varying power supply needs. The device features Single Pole Double Throw (SPDT) contacts rated at 1A/28VDC, making it highly versatile for various control scenarios.

• UL Listed ensuring dependable safety and quality standards.
• Rugged construction suitable for demanding environments.
• Operates efficiently across a temperature range of -25 degrees Celsius to 55 degrees Celsius.

Product Highlights

This module is particularly noted for its sensitivity and reliability in maintaining continuous duties in access control systems. Its compact dimensions make it easy to install in limited spaces while offering robust performance.

Product Information

Standard Information

• Brand: Altronix
• Model: RBUL

Technical Specifications

• Operating Voltage: 12VDC / 24VDC selectable
• Contact Configuration: SPDT
• Contact Rating: 1 amp / 28VDC
• Operating Temperature Range: -25 to 55 degrees Celsius ambient
• Dimensions: Width: 2 inches, Height: 1 inch, Depth: 2.8 inches
• Construction: Snap Track for easy mounting
• Compliance: ROHS, UL365
