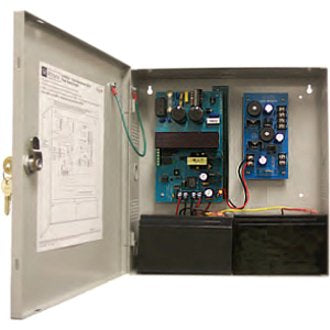

Altronix Power Supply Charger AL400UL3 5/12/24VDC at 1.75/1.75/1.5A 115VAC Replacement AL400UL3

Product Description

The Altronix AL400UL3 Power Supply Charger is a vital component for various access control systems, providing distinct and regulated voltages. It efficiently converts 115VAC/60Hz input into individually protected 5VDC, 12VDC, and 24VDC outputs.

• Features three PTC class 2 protected outputs ensuring stable performance.
• Equipped with short-circuit, thermal overload, and AC supervision for enhanced safety and reliability.
• Supports battery monitoring with visible LED indicators for AC input and DC output.

Product Highlights

This charger is housed in a durable BC300 enclosure and is engineered for long-lasting performance in professional settings. It offers critical monitoring capabilities such as low battery detection and battery presence checking which are essential for maintaining operational reliability.

Product Information

Technical Specifications

• Input Voltage: 115V AC
• Output Voltage: 5V DC, 12V DC, 24V DC
• Output Current: 1.5A at 24V DC, 1.75A at 5V DC and 12V DC
• Dimensions (HxWxD): 13.5 inches x 13 inches x 3.25 inches
• Compliance: UL Listed, cUL Listed, CS FM approved, and MEA approved
• Lifetime Warranty provided by Altronix Corporation
