Altronix PDS8CBK1 VR6 and PDS8CB power integration kit 24 VDC to 5 V/12 V 6 A (8 outputs) AX-PDS8CBK1

Product Description

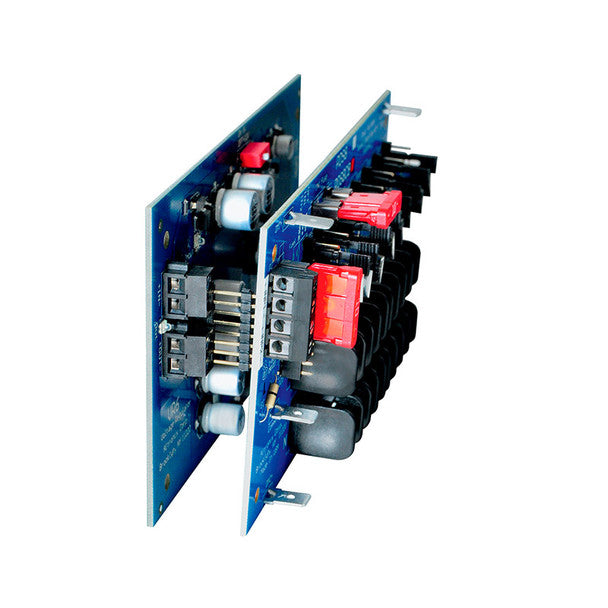

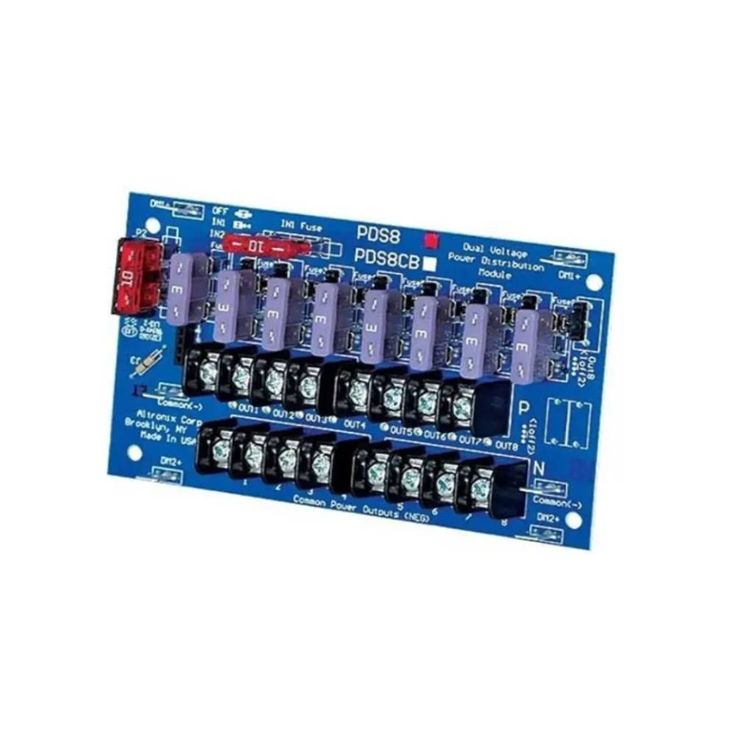

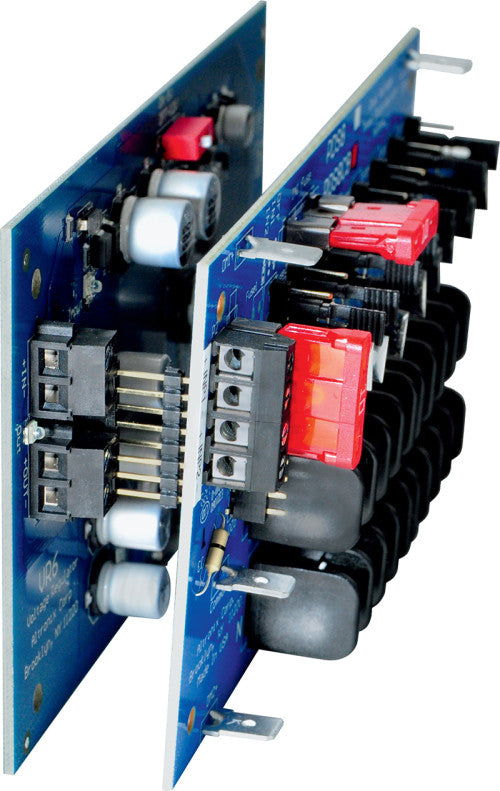

The Altronix PDS8CBK1 kit includes the VR6 voltage regulator and the PDS8CB dual-input power distribution module. The VR6 converts a 24 VDC input into a selectable regulated 5 VDC or 12 VDC output at up to 6 A. The PDS8CB accepts two low-voltage AC or DC inputs and distributes power across eight PTC-protected outputs with surge suppression and status LEDs, and individual outputs can be set OFF for servicing.

• VR6 selectable regulated output: 5 VDC or 12 VDC from 24 VDC input, 6 A max.
• PDS8CB dual-input distribution: accepts 5–24 VDC or 16–28 VAC inputs and provides eight PTC-protected outputs rated at 2 A each (total limited by supply).
• Surge suppression and input/output LEDs; individual output LEDs; UL and cUL listings; TAA, NDAA, BAA compliant.

Product Highlights

24 VDC input to selectable 5 V/12 V regulator (6 A); dual-input eight PTC-protected outputs (2 A each); surge suppression and status LEDs.

Product Information

Standard Information

• Brand: ALTRONIX
• Manufacturer Part Number: PDS8CBK1
• Country of Origin: United States

Technical Specifications

• Brand: Altronix
• Manufacturer Part Number: PDS8CBK1
• ADI Part Number: AX-PDS8CBK1
• Product Type: Power integration kit
• Kit Components: VR6 voltage regulator; PDS8CB dual-input power distribution module
• VR6 Input Voltage: 24 VDC
• VR6 Input Current (for 5 V output): 24 VDC @ 1.75 A (input for 5 V output)
• VR6 Input Current (for 12 V output): 24 VDC @ 3.5 A (input for 12 V output)
• VR6 Output Voltage Options: Selectable 5 VDC or 12 VDC regulated
• VR6 Output Current: Up to 6 A (non power-limited)
• VR6 Features: Surge suppression; input and output LEDs; thermal output approx. 15 BTU/hr (5 V) and 37 BTU/hr (12 V)
• PDS8CB Input Voltage Range: 5 VDC to 24 VDC (up to 9 A each input) or 16 VAC to 28 VAC (up to 9 A each input)
• Number of Outputs: Eight PTC-protected outputs
• Output Protection: PTC protected, outputs rated at 2 A each (total output limited by supply)
• Output Selection: Outputs selectable to follow Input 1 or Input 2; individual outputs may be set OFF for servicing
• Indicators: Input and output LEDs; individual output LEDs (color indicates voltage state)
• Surge Suppression: Included on both VR6 and PDS8CB
• Operating Temperature: 0°C to 49°C (32°F to 120°F)
• Storage Temperature: -20°C to 70°C (-4°F to 158°F)
• Relative Humidity: 85% ± 5%
• Agency Listings: UL Listed for Access Control System Units (UL294); cUL Listed CAN/ULC S319-05 Electronic Access Control Systems
• Compliance: TAA, NDAA, BAA, RoHS
• Mount Type: Board mount
• Weight: 0.8 lb (0.36 kg)
• Country of Origin: United States
• NDAA Compliant: Yes
• UNSPSC Code: 43211700
