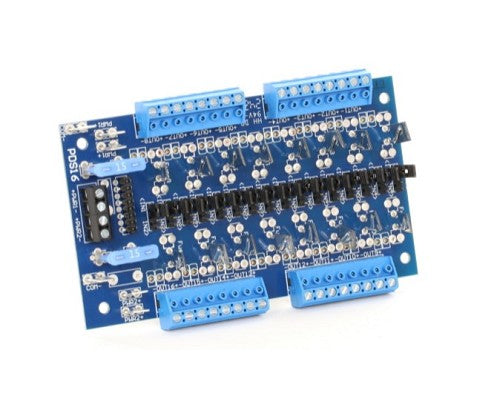

Altronix PDS16CB Dual Input Power Distribution Module, 16 PTC Outputs

Product Description

Altronix PDS16CB is a dual input power distribution module with the MPN PDS16CB. It is designed to manage power from two low-voltage sources. You can choose from two AC or DC inputs, allowing versatile integration into various systems. The module has a total of sixteen PTC protected outputs, ensuring safety and reliability. You can easily connect multiple PDS16CB modules through spade connectors for larger system configurations.

• Supports dual input from AC or DC power sources
• Features 16 PTC protected outputs
• Allows daisy chaining for expanded output capacity

Product Highlights

This module is ideal for installations requiring distributed power management across multiple devices. The PDS16CB module is suitable for security systems, access control applications, and other powered installations.

Product Information

Standard Information

• Brand: Altronix
• Manufacturer: Altronix Corporation

Technical Specifications

• Voltage Range: 5VDC to 24VDC or 16VAC to 28VAC
• Maximum Output Current: 10A each input
• Main PTC Rating: 9A
• Rated Output per Port: 2A
• Total Output: 16A
• Environmentally Friendly: Yes
• Environmental Certification: ROHS
• Limited Warranty: Lifetime
