Altronix PDS16 Dual Input Power Distribution Module 5V-24V / 16VAC-28VAC (16 Outputs) PDS16

Product Description

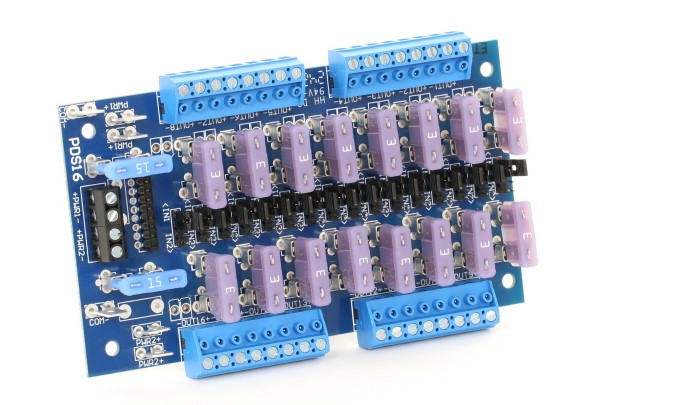

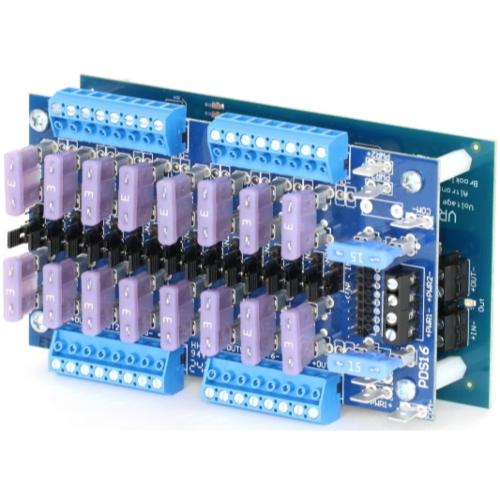

Altronix PDS16 is a dual input power distribution module (MPN PDS16) that accepts two low-voltage AC or DC sources and distributes power across sixteen fused outputs. It supports 5 VDC to 24 VDC or 16 VAC to 28 VAC inputs, up to 10 A per input (20 A total), and provides 3 A fused outputs (3 A/32 V each) with LED voltage indicators and daisy-chainable spade connectors for expanded systems in access control and security applications.

• Accepts dual AC or DC inputs: 5 VDC–24 VDC or 16 VAC–28 VAC; up to 10 A per input, 20 A total
• Sixteen fuse-protected outputs rated 3 A each (3 A/32 V); total output 20 A max; 15/32 A main fuse
• Selectable outputs follow Input 1 or Input 2; individual outputs can be set OFF; spade connectors allow daisy-chaining; LED voltage indicators

Product Highlights

Dual AC/DC inputs; 16 fused outputs (3 A each); 20 A total capacity; selectable outputs and daisy-chainable spade connectors; LED voltage indication

Product Information

Standard Information

• Brand: ALTRONIX
• Manufacturer Part Number: PDS16
• Country of Origin: United States

Technical Specifications

• Brand: Altronix
• Manufacturer: Altronix Corporation
• Manufacturer Part Number: PDS16
• Product Type: Dual input power distribution module
• Input Voltage: 5 V DC to 24 V DC or 16 VAC to 28 VAC
• Max Input Current per Input: Up to 10 A each
• Total Input Current: 20 A total
• Main Fuse Rating: 15/32 A
• Output Count: 16
• Output Current per Output: 3 A
• Total Output Current: 20 A max
• Output Protection: Fuse protected (3 A / 32 V each), non power-limited
• Selectable Outputs: Any output selectable to follow Input 1 or Input 2; individual outputs may be set to OFF
• Connectors: Spade connectors for daisy-chaining multiple modules
• LED Indicators: Indicates 12 VDC (green) and 24 VDC (red and green)
• Mount Type: Board mount
• Operating Temperature: 0 C to 49 C (32 F to 120 F)
• Storage Temperature: -20 C to 70 C (-4 F to 158 F)
• Relative Humidity: 85% ± 5%
• Dimensions: 1 in W x 5.375 in L x 3 in H (25.4 mm x 136.5 mm x 76.2 mm)
• Weight: 6.40 oz (0.4 lbs / 0.18 kg)
• Country of Origin: United States
• Certifications: RoHS
• NDAA Compliant: Yes
• UNSPSC Code: 43211700
