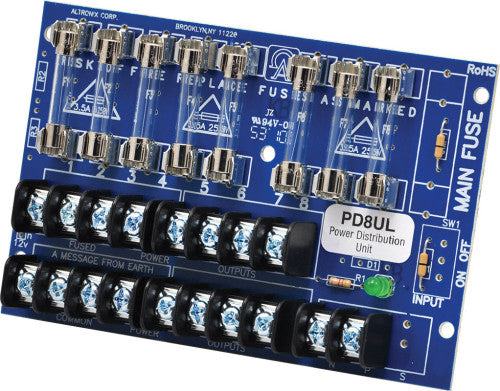

Altronix PD8UL Power Distribution Module, Fused Outputs up to 28VAC/VDC

Product Description

The Altronix PD8UL is a power distribution module that converts a single AC or DC input into eight fused outputs. This component is recognized by UL, ensuring reliability and safety in applications. Designed for both residential and commercial use, the PD8UL is suitable for low voltage installations.

• Eight individually fused outputs.
• LED power indicator.
• Compatible with both AC and DC power inputs.

Product Highlights

The PD8UL provides an efficient solution for power distribution needs, offering a maximum power input of twenty-eight volts at fourteen amperes.

Product Information

Standard Information

• Brand: Altronix
• Manufacturer: Altronix Corporation

Technical Specifications

• Input Voltage: 28V AC, 28V DC
• Outputs: Eight (8) fused outputs
• Weight: 4.80 oz (136.078 g)
• Dimensions: 5.3 inches (depth) x 3.3 inches (width) x 1 inch (height)
• Environmental Certification: ROHS
• Limited Warranty: Lifetime
