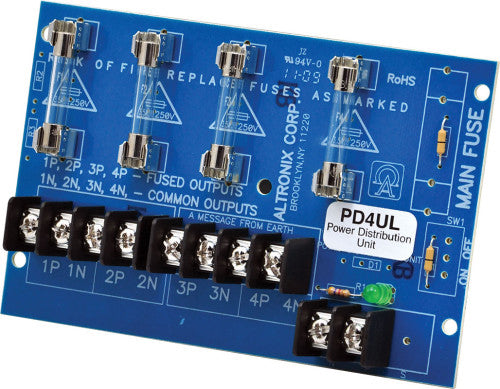

Altronix PD4UL Power Distribution Module, Fused Outputs up to 28VAC/VDC, Board

Product Description

The Altronix PD4UL is a power distribution module that converts a single AC or DC input into four individually fuse protected outputs. This module is UL Recognized and suitable for various applications including security and signaling. It is designed to provide power management efficiently and effectively.

• UL Recognized for safety and compliance
• Four fuse protected outputs to ensure reliable operation
• Power LED indicator for status monitoring

Product Highlights

Ideal for use in security systems and access control, the PD4UL supports both AC and DC power sources.

Product Information

Standard Information

• Brand: Altronix
• Manufacturer: Altronix Corporation

Technical Specifications

• Input Voltage: 28V AC/DC
• Outputs: Four individually fuse protected
• Power Indicator: Yes
• Surge Protection: Yes
• Operating Temperature: 0°C to 49°C
• Environmental Certification: ROHS
• Depth: 5.3 inches
• Width: 3.3 inches
• Height: 1 inch
