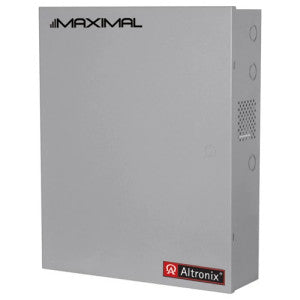

Altronix MAXIMAL75E Maximal E Series Power Supply Charger Expandable 115V AC 4-Outputs BC800 Enclosure

Product Description

The Altronix MAXIMAL75E is a versatile power supply/charger designed for system installers. It supplies both 12VDC and 24VDC through two single output units, ideal for various applications in security systems.

• Provides filtered and electronically regulated outputs
• Includes a built-in charger for sealed lead acid or gel type batteries
• Features automatic switchover to backup battery when AC fails

Product Highlights

This model ensures stable power delivery for access control systems, meeting the needs of security and signaling applications.

Product Information

Standard Information

• Brand: Altronix
• Part Number: MAXIMAL75E

Technical Specifications

• AC Input Requirement: 115V
• Output Voltages: 12VDC at 10A, 24VDC at 10A
• Operating Temperature: 0 degrees C to 49 degrees C (32 degrees F to 120 degrees F)
• Storage Temperature: -20 degrees C to 70 degrees C (-4 degrees F to 158 degrees F)
• Humidity: Relative Humidity 85% +/- 5%
• Dimensions: 26 inches (H) x 19 inches (W) x 6.25 inches (D)
• Model Series: Maximal E Series
• ECCN: EAR99
• Country of Origin: US - United States
