Altronix Corp T2MK7FAMZ Access Power Supply Kit 24VDC 10A

Product Description

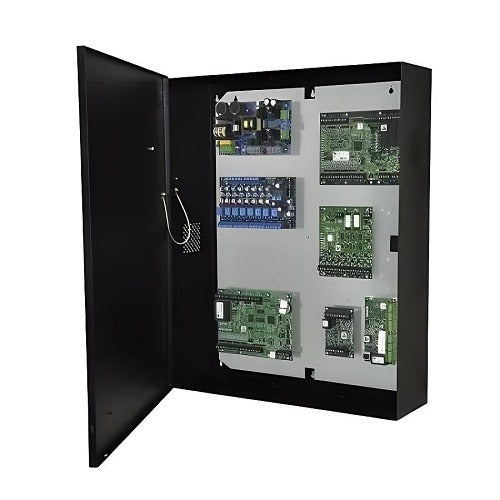

The ALTRONIX CORP T2MK7FAMZ is an access control power supply kit combining a Trove2 enclosure, a TMV2 power supply module, and a PD16CB power distribution board into a single integrated assembly. The kit delivers 24 volts DC at up to 10 amps of continuous output, providing centralized power and distribution for access control panels, electrified locks, and associated peripherals. It is designed for installation by licensed security or low-voltage technicians in commercial and light-industrial access control deployments where a clean, code-compliant power solution is required in a single enclosure.

This kit is suited for commercial access control installations where multiple powered devices must be fed from one organized assembly. The Trove2 enclosure provides a structured mounting environment, while the PD16CB distribution board allows individual circuit outputs for connected field devices. Typical applications include electronic door hardware, gate controllers, and alarm panel auxiliary power. The integrated design reduces field assembly time and supports a cleaner final installation in telecommunications rooms, IT closets, or electrical rooms.

Key Features

• 24 volts DC output at up to 10 amps continuous load
• Integrated Trove2 enclosure with TMV2 power supply module included
• PD16CB power distribution board provides multiple individually protected outputs
• Designed for centralized access control power management in commercial environments
• Single-unit kit reduces field sourcing and simplifies installation workflow

Compatibility

Designed as an OEM-style access power supply kit for commercial access control systems requiring a 24 VDC centralized power and distribution assembly.

Installation Notes

Installation should be performed by a licensed low-voltage or security systems technician in accordance with applicable local codes and NFPA 70 (NEC) Article 725 for Class 2 power-limited circuits. Disconnect and lock out all power sources before servicing or wiring the unit. Verify that total connected load does not exceed the rated 10-amp output before energizing. Secure the enclosure to a structural surface and ensure adequate clearance for wiring and serviceability.
