Altronix Corp T2MK5F8D Access Power Supply 12V 10A 8 Output

Product Description

The ALTRONIX CORP T2MK5F8D is an access control power supply designed to provide regulated 12-volt DC power to access control panels, locking hardware, and related field devices. Rated at 10 amps total output capacity, it distributes power across 8 individually protected outputs using PTC (polymeric positive temperature coefficient) resettable overcurrent protection. This eliminates the need for manual fuse replacement after an overcurrent event. Security and low-voltage electricians install this unit in new and retrofit access control installations where centralized, multi-zone power distribution is required.

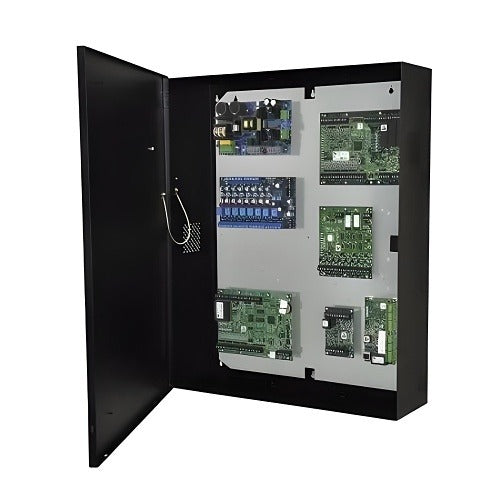

The T2MK5F8D is suited for commercial and light-industrial access control applications. The 8 individually fused PTC outputs allow each door controller, magnetic lock, or electric strike to be powered and protected on its own circuit. This simplifies troubleshooting by isolating faults to a single output without affecting the rest of the system. The unit is part of the Trove2 modular enclosure platform, which supports integration of power and control components into a single housing.

Key Features

• 12-volt DC output at 10 amps total rated capacity
• 8 individually protected outputs with PTC resettable overcurrent devices
• PTC protection resets automatically after fault is cleared — no fuse replacement required
• Designed for the Trove2 modular enclosure platform for integrated access control installations
• Suitable for powering electric locks, magnetic locks, door controllers, and related low-voltage devices

Compatibility

Designed as an OEM-style replacement and integration component for access control power distribution applications within the ALTRONIX CORP Trove2 modular enclosure system.

Installation Notes

Installation should be performed by a licensed low-voltage electrician or qualified access control technician in accordance with NEC Article 725 for Class 2 and Class 3 remote-control and signaling circuits. De-energize all connected devices and disconnect AC input power before servicing or wiring outputs. Verify that the total connected load across all 8 outputs does not exceed the 10-amp rated capacity of the supply. Follow the enclosure manufacturer mounting guidelines when integrating into the Trove2 platform.
