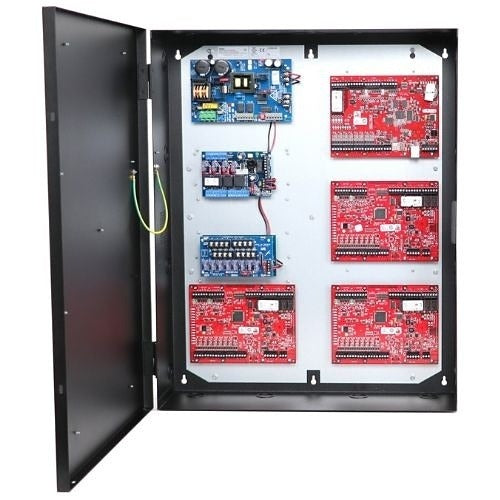

Altronix Corp T2MK3F4 Access Power Supply 4-door 6A

Product Description

The ALTRONIX CORP T2MK3F4 is a fused access power supply designed for multi-door access control applications. Built around the Trove2 form factor, this unit supports up to four doors and delivers 6 amps of fused output current. It is engineered for installation within compatible Altronix enclosures and is intended for use by licensed security and low-voltage electricians working on commercial or institutional access control systems. The fused outputs provide individual circuit protection, reducing troubleshooting time and protecting field wiring and connected hardware from overcurrent faults.

This power supply module is suited for commercial access control installations where multiple entry points require dedicated, protected power. Typical applications include office buildings, multi-tenant facilities, and institutional sites where four-door controller configurations are common. The Trove2 mounting format integrates with panel-based access control architectures, allowing installers to consolidate power distribution and control hardware within a single enclosure footprint.

Key Features

• Supports up to 4 doors from a single power supply module
• 6-amp total output capacity with fused circuit protection
• Trove2 form factor for enclosure-based installation
• Fused outputs help isolate faults and protect connected devices
• Designed for low-voltage access control system integration

Compatibility

Designed as an OEM-style replacement or expansion module for Trove2 series access control power supply enclosures in commercial low-voltage installations.

Installation Notes

Installation should be performed by a licensed low-voltage or electrical technician familiar with access control power distribution. Disconnect and de-energize all power sources before servicing or connecting field wiring. Follow applicable NEC low-voltage wiring guidelines and local authority having jurisdiction requirements for access control power supply installations. Verify fuse ratings match the load requirements of each connected door circuit before energizing the system.
