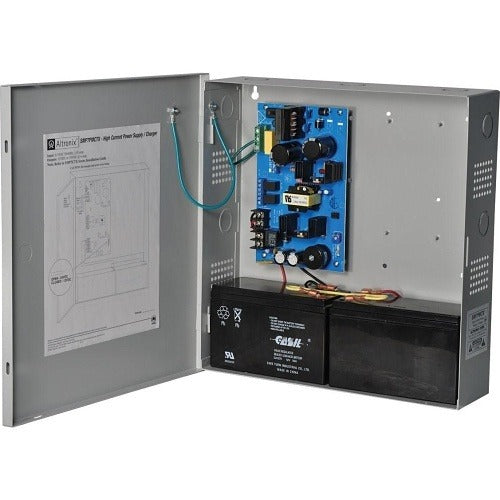

Altronix Corp SMP7PMCTX220 Supervised Power Supply

Product Description

The ALTRONIX CORP SMP7PMCTX220 is a supervised access control power supply housed in a large cabinet enclosure. It operates at selectable 12 or 24 volt DC output and delivers up to 6.0 amps of continuous current, making it suitable for powering access control panels, electric locks, door strikes, and related low-voltage security devices. The supervised output provides fault monitoring, which allows installers to detect open or short conditions on connected circuits. Licensed electricians and access control technicians are the typical trades responsible for installation and commissioning of this unit.

This power supply is designed for commercial and light industrial access control applications where a dedicated, supervised power source is required. The large cabinet form factor accommodates additional modules or wiring space, which is useful in multi-door access control installations where several devices must be powered from a single distribution point. It accepts 220 volt AC input, making it appropriate for installations wired to 220 VAC service, common in international deployments or certain commercial facilities.

Key Features

• Selectable 12 or 24 volt DC output to match connected device requirements
• 6.0 amp continuous output capacity for multi-device access control loads
• Supervised output enables open and short circuit fault detection
• 220 volt AC input for compatibility with 220 VAC supply circuits
• Large cabinet enclosure provides wiring space and room for additional components

Compatibility

Designed as an OEM-style power supply for supervised access control systems requiring a 12 or 24 volt DC source at up to 6.0 amps with 220 volt AC input.

Installation Notes

Installation should be performed by a licensed electrician or qualified access control technician in accordance with the NEC and applicable local codes. Disconnect and lock out all AC power before wiring the unit or connecting output loads. Verify the output voltage selector is set to the correct voltage before energizing the supply. Do not exceed the rated 6.0 amp output load across all connected circuits.
