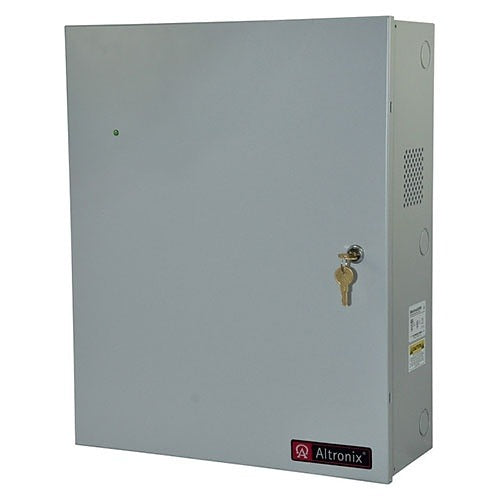

Altronix Corp MAXFIT37FE Access Power Supply Enclosure

Product Description

The ALTRONIX CORP MAXFIT37FE is an access control power supply housed in an enclosure, designed to deliver reliable DC power to access control systems and related low-voltage security hardware. Based on the part designation, this unit supports dual-voltage output configurations at 12 or 24 VDC at 6 amps and 24 VDC at 10 amps, providing the current capacity needed for electronic locks, controllers, and peripheral devices. It is installed by licensed security and low-voltage electricians as part of centralized access control panel builds.

This power supply enclosure is suited for commercial and light industrial access control installations where a self-contained power distribution point is required. The enclosure format allows the unit to serve as a mounting host for power supply boards and associated hardware, keeping wiring organized and components protected. It is a standard component in door controller and card reader system infrastructure.

Key Features

• Dual-voltage output supports 12 VDC and 24 VDC operation
• 6-amp output capacity for multi-device distribution at 12 or 24 VDC
• 10-amp output capacity at 24 VDC for higher-demand access control loads
• Enclosure-integrated design protects internal power supply components
• Sold as a single unit (each)

Compatibility

Designed as an OEM-style replacement or direct installation component for access control power distribution systems requiring 12 VDC or 24 VDC low-voltage power supply infrastructure.

Installation Notes

Installation should be performed by a licensed low-voltage or electrical contractor in accordance with NEC Article 725 for Class 2 and Class 3 remote-control and signaling circuits. Disconnect and lock out all power sources before servicing or connecting wiring to the enclosure. Verify that the total connected load does not exceed the rated output amperage of the supply before energizing. Mount the enclosure on a secure, flat surface in a conditioned, dry location with adequate clearance for wiring access.
