Altronix Corp EFLOW6N8D3Q Access Power Supply 12 24VDC 6A

Product Description

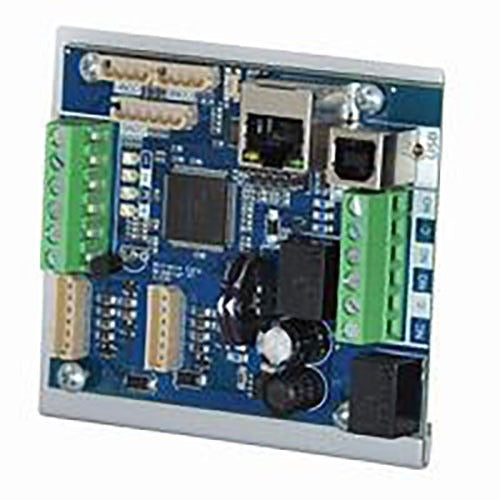

The Altronix Corp EFLOW6N8D3Q is an access control power supply designed to deliver regulated 12 or 24 VDC at up to 6 amps across eight individually protected PTC (positive temperature coefficient) outputs. It integrates Altronix LINQ2 network communication capability, allowing remote monitoring and management of power status over a network connection. The FAI (Fused Access Input) feature adds an additional layer of circuit protection. This unit is intended for professional installation in commercial and enterprise-level access control systems by licensed low-voltage or security technicians.

The EFLOW6N8D3Q is suited for mid-size access control deployments where multiple door controllers, electric locks, request-to-exit devices, or readers require independently fused power distribution from a single supply. The LINQ2 integration makes it a fit for networked access systems where supervisory monitoring of power health is required. Its multi-output architecture reduces the need for multiple standalone supplies in panel rooms or IDF closets.

Key Features

• Selectable 12 VDC or 24 VDC output voltage to match device requirements
• 6-amp total output current capacity
• Eight PTC-protected outputs provide individual resettable overcurrent protection per circuit
• LINQ2 network communication support enables remote power status monitoring
• FAI (Fused Access Input) for added upstream circuit protection

Compatibility

Designed as an OEM-style replacement or direct installation unit for commercial access control power distribution applications requiring multi-output 12 or 24 VDC regulated supply with networked supervision.

Installation Notes

Installation should be performed by a licensed low-voltage or security systems technician in accordance with NEC Article 725 for Class 2 and Class 3 remote-control and signaling circuits. Disconnect and de-energize all upstream AC power before wiring outputs or making network connections. Verify output voltage selection matches connected device requirements before applying power. Do not exceed the aggregate 6-amp output rating across all eight PTC circuits.
