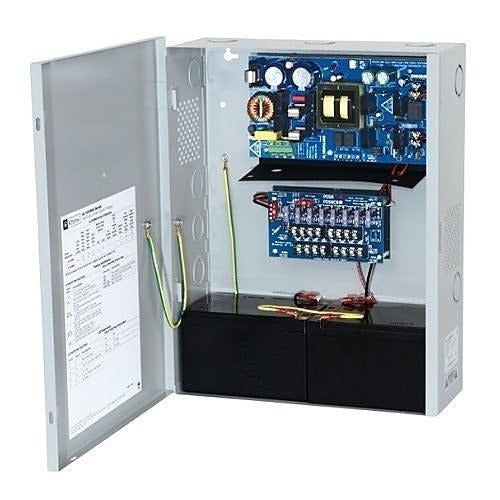

Altronix Corp AL1024NK8D Access Power Supply 12VDC 6A

Product Description

The ALTRONIX CORP AL1024NK8D is a multi-output access control power supply designed to distribute DC power across eight individually protected outputs. Operating on a 115VAC input, the unit delivers 12VDC at up to 6 amps total output current. Each output is protected by a resettable PTC (polymeric positive temperature coefficient) overcurrent device, which eliminates the need for manual fuse replacement after a fault clears. Security and low-voltage system integrators install this unit in access control panels, door hardware systems, and credential reader installations where distributed, protected power distribution is required.

The AL1024NK8D is suited for commercial and light industrial access control environments. It provides eight discrete PTC-protected output circuits, making it practical for powering electric locks, magnetic locks, request-to-exit devices, or credential readers from a single centralized power source. The 115VAC input is compatible with standard North American single-phase branch circuits. Installers typically mount this unit inside a rack or wall-enclosure alongside access control panels.

Key Features

• Eight individually PTC-protected DC output circuits with automatic fault recovery
• 12VDC output at up to 6 amps total capacity
• 115VAC single-phase input compatible with standard North American branch circuits
• Resettable PTC overcurrent protection eliminates manual fuse servicing
• Centralized power distribution reduces field wiring complexity in access control installations

Compatibility

Designed as an OEM-style access power supply for use in commercial access control systems requiring distributed 12VDC power with individually protected outputs.

Installation Notes

Installation should be performed by a licensed low-voltage or security systems technician in accordance with applicable NEC low-voltage wiring requirements. Disconnect and lock out the 115VAC source before making any wiring connections to the unit. Verify that the total combined load across all eight outputs does not exceed the rated 6-amp output capacity before energizing. Mount the unit in a secure, ventilated enclosure appropriate for the installation environment.
