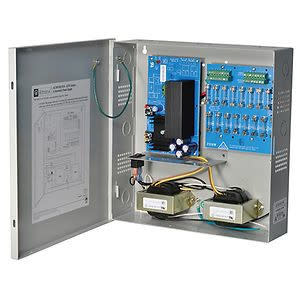

Altronix ALTV615DC1016 CCTV Power Supply, 16 Fused Outputs, 6-15VDC at 10A, BC300 Enclosure

Product Description

The Altronix ALTV615DC1016 CCTV Power Supply provides 6-15VDC distributed via sixteen (16) fuse or PTC protected outputs for powering CCTV Cameras, heaters and other video accessories. It features an input voltage of 110V AC and a total output current of 10A. The unit is designed for indoor wall mount applications.

• Sixteen (16) fuse protected outputs
• AC input and DC output LED indicators.
• Spare fuse(s) provided

Product Highlights

Provides reliable power distribution for CCTV systems with multiple outputs and voltage options.

Product Information

Standard Information

• Brand: ALTRONIX
• Manufacturer Part Number: ALTV615DC1016
• Country of Origin: United States

Technical Specifications

• Brand Name: Altronix
• Form Factor: Wall Mount
• Manufacturer: Altronix
• Product Name: ALTV615DC1016 Proprietary Power Supply
• Product Type: Proprietary Power Supply
• Compatibility: Heaters, CCTV Cameras, Video Accessories
• Input Voltage: 110V AC
• Product Model: ALTV615DC1016
• NDAA Compliant: yes
• Output Current: 10A total continuous supply current (0.625A per device, 3.5A max.).
• Output Voltage: 6VDC to 15VDC field adjustable.
• ADI Part Number: AX-615DC1016
• Output Current (A): 10
• Input Voltage (V AC): 110
• Environmentally Friendly: Yes
• Manufacturer Part Number: ALTV615DC1016
• Environmental Certification: ROHS
• Environment Type: INDOOR
• Mounting Type: WALL
• Voltage/Current Type: 115 VAC
• Type: POWER SUPPLY
• UNSPSC Code: 39121031
• Input: 115VAC, 50/60 Hz, 1.9A.
• Output: Sixteen (16) fuse protected outputs.
• Output Fuses: Output fuses are rated @ 3.5A/250VAC.
• Outputs: Filtered and electronically regulated outputs.
• Operating Temperature: 0 to 49° C (32 to 120° F )
• Storage Temperature: - 20 to 70° C ( - 4 to 158° F)
• Relative Humidity: 85% +/- 5%
• BTU/Hr. (approx.): 31-77 BTU/Hr.
• System AC input VA requirement: 218.5VA.
• Enclosure: Wall mount enclosure for indoor use.
• Knockouts: 1/2" and 3/4" combination knockouts.
• VA Rating: 218.5VA
• Current Rating: 10 Amps
• Product Line: DC CCTV
• Product Series: ALTV615DC
• Sector: Video Surveillance
• Indoor/Outdoor: Indoor
• Application: Heaters and Video Accessories, Indoor, Powering CCTV Cameras
• No. of Outlets: 16
• ECCN: EAR99
