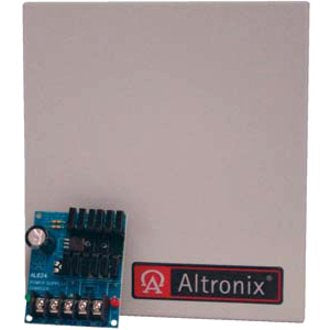

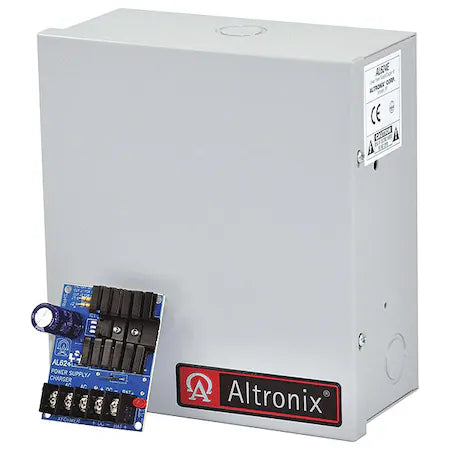

Altronix AL624E Power Supply Charger 6/12/24VDC 1.2A Single Output

Product Description

The Altronix AL624E Linear Power Supply Charger efficiently converts low voltage AC input into selectable 6VDC, 12VDC, or 24VDC outputs. This versatile unit is designed for a broad range of applications, including access control, security, and CCTV system components requiring additional power.

• Offers a single Class 2 output with 6VDC, 12VDC, or 24VDC selectable outputs.
• Incorporates PTC battery protection to safeguard connected components.
• Comes with an enclosure, making it suitable for various installation environments.

Product Highlights

The AL624E is equipped with features that ensure reliable power delivery and safety for connected devices, emphasizing its utility in professional security setups.

Product Information

Standard Information

• Brand: Altronix
• MPN: AL624E
• UPC: 782239932627

Technical Specifications

• Input Voltage: 16 to 24V AC
• Output Voltage: 6V DC at 1.2A, 12V DC at 1.2A, 24V DC at 750 mA
• Output Current: 1.2A
• Enclosure Dimensions: Height: 8.5 inches, Width: 7.5 inches, Depth: 3.5 inches
• Country of Origin: United States
• Warranty: Lifetime limited warranty
