Altronix AL600ULMR Power Distribution Module 12/24VDC 6A Replacement AX-AL600ULMR

Product Description

Enhance your access control systems with the Altronix AL600ULMR Power Distribution Module. This essential equipment, designed by Altronix Corporation, is integral for converting a 115VAC 60Hz input into either 12VDC or 24VDC with a 6 amp output spread over five PTC protected outputs.

• Equipped with short circuit and thermal overload protection.
• Features AC supervision and battery monitoring for optimal performance.
• Includes LED indicators for AC input and DC output statuses.

Product Highlights

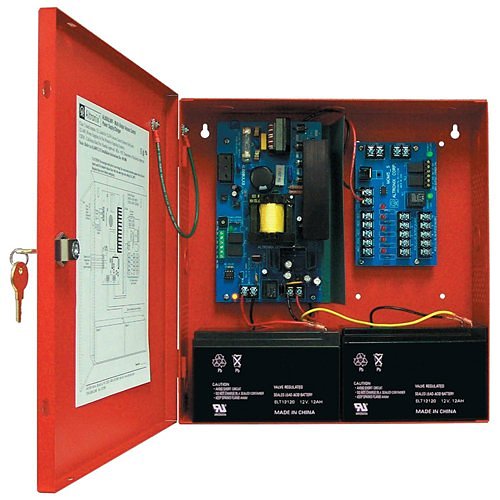

The Altronix AL600ULMR ensures continuous operation with its robust fire alarm panel integration and polarity reversal trigger inputs. It is housed in a sturdy, red BC300 enclosure that guarantees durability.

Product Information

Standard Information

• Brand: Altronix
• Model: AL600ULMR

Technical Specifications

• Input Voltage: 115V AC
• Output Voltage: 12V DC, 24V DC
• Output Current: 6A
• Manufactured in: United States
• Product Type: Proprietary Power Supply
• Enclosure Size (HxWxD): 13.5 inches x 13 inches x 3.3 inches
• Weight: TBD
