Product Description

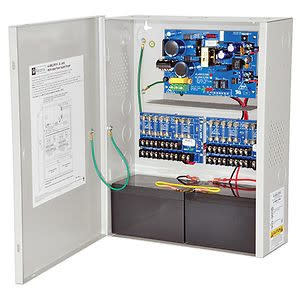

The Altronix AL400ULXPD16 power supply/charger is designed to convert 115VAC 60Hz input to a continuous supply current. It outputs 4 amps at 12VDC or 3 amps at 24VDC through sixteen class 2 rated, fuse-protected outputs. It ensures safe operation with features such as short circuit protection and thermal overload protection. This model supports battery supervision and automatic switchover to backup battery when AC fails.
- 16 fused outputs for added reliability
- Includes short circuit and thermal overload protection
- Integrated AC supervision and battery monitoring
Product Highlights
The AL400ULXPD16 model enhances security systems by providing reliable power management and distribution for various applications.
Product Information
Standard Information
-
Brand: Altronix Corporation
-
Country of Origin: United States
Technical Specifications
-
Input Voltage: 110V AC
-
Output Voltage: 12V DC, 24V DC
-
Output Current: 4A
-
Number of Outputs: 16
-
Weight: 10.30 lb
-
Dimensions: 15.5 x 12.2 x 4.5 inches
-
Environmental Certification: ROHS
-
Limited Warranty: Lifetime
