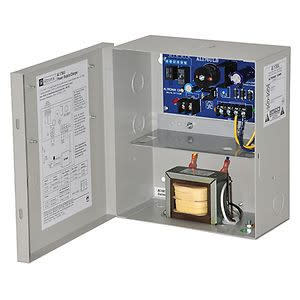

Altronix AL176UL Access Control Power Supply Charger, 12/24VDC at 1.75A

Product Description

The Altronix AL176UL is a power supply charger designed for access control systems. It converts a 115VAC input into outputs of either 12VDC or 24VDC, with a single PTC class output rated for 1.75A. This power supply is ideal for use in security and signaling applications.

• Single PTC Class 2 Output
• AC fail supervision and low battery supervision with form C contacts
• LED indicators for AC input and DC output

Product Highlights

The Altronix AL176UL is a reliable solution for providing power in access control systems. It features thermal overload protection and PTC protection to ensure safe operation.

Product Information

Standard Information

• Brand: Altronix
• Manufacturer: Altronix Corporation
• Country of Origin: United States

Technical Specifications

• MPN: AL176UL
• Input Voltage: 110V AC
• Output Voltage: 12V DC / 24V DC
• Output Current: 1.75A
• Dimensions: 8.5 inches (H) x 7.5 inches (W) x 3.5 inches (D)
• Weight: 5.30 lb
• Environmental Certification: ROHS
