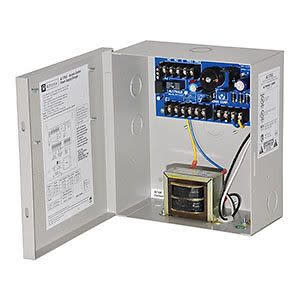

Altronix AL175UL Access Control Power Supply Charger, 12/24VDC at 1.75A, PTC Class Outputs

Product Description

Altronix AL175UL is a power supply charger designed for access control systems. It converts a one hundred fifteen VAC input into two PTC protected outputs of twelve or twenty-four VDC at a continuous maximum of one point seventy-five A.

• Voltage input: 115VAC, 60Hz.
• Two individually PTC protected outputs.
• Fail-safe and fail-secure lock options available.

Product Highlights

Efficiently powers access control systems while ensuring safety with short circuit and thermal overload protection.

Product Information

Standard Information

• Brand: Altronix
• Manufacturer: Altronix Corporation

Technical Specifications

• Input Voltage: 120V AC
• Output Voltage: 12V DC, 24V DC
• Output Current: 1.75A
• Dimensions: 3.5 inches (D) x 7.5 inches (W) x 8.5 inches (H)
• Environmental Certification: ROHS
• Form Factor: Wall Mount Enclosure
• Country of Origin: United States
• Compatibility: Access Control System, Signal Equipment
