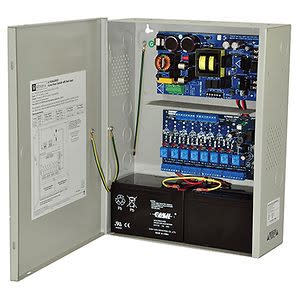

Altronix AL1024ULACMCB Access Power Controller with Power Supply Charger, PTC Class Relay Outputs, 24VDC at 10A, BC400 Enclosure

Product Description

The Altronix AL1024ULACMCB is a power controller designed for access control systems. It converts 115VAC input into eight independently controlled outputs for 12VDC or 24VDC devices. This unit features PTC protected outputs, making it suitable for a variety of applications.

• Provides eight outputs that allow for Fail-Safe and Fail-Secure options.
• Compatible with various access control hardware including mag locks and electric strikes.
• Includes emergency egress and alarm monitoring capabilities.

Product Highlights

The AL1024ULACMCB offers robust power solutions with versatility for access control systems.

Product Information

Standard Information

• Brand: Altronix
• Manufacturer: Altronix Corporation

Technical Specifications

• Input Voltage: 120V AC
• Output Voltage: 24V DC
• Output Current: 10A
• Dimensions: 15.5 inches (height) x 12.2 inches (width) x 4.5 inches (depth)
• Weight: 11.75 lb
• Environmental Certification: ROHS
• Compatibility: Mag locks, electric strikes, and magnetic door holders
• Fire Alarm Disconnect: Individually selectable for any or all outputs
