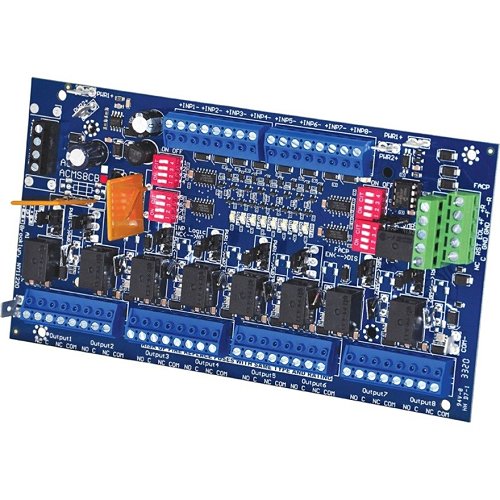

Altronix ACMS8CB Access Power Controller Dual-Input 8 PTC Protected Outputs Board

Product Description

The Altronix ACMS8CB Access Power Controller is a high-quality, UL-listed board designed for efficient power distribution within access control systems. Perfect for use with Altronix's wall and rack mount enclosures, this device is powered by eFlow series power supplies, ensuring reliable performance. It features a dual-input design that channels power from two independent 5 to 24 VDC sources to eight PTC protected outputs, each capable of being individually controlled. The controller is ideal for routing power to various access control devices such as magnetic locks, electric strikes, and door holders. It supports both fail-safe and fail-secure operational modes.

• Dual Voltage Input for Flexible Power Management
• Eight PTC protected outputs, each rated at 2A
• Supports both Fail-Safe and Fail-Secure configurations

Product Highlights

This unit features red LEDs that indicate active outputs and a blue LED for FACP disconnect alerts, enhancing system monitoring and security measures. The spade connectors support daisy chaining of power to multiple modules, expanding system capacity without compromising on performance.

Product Information

Standard Information

• Brand: Altronix
• MPN: ACMS8CB

Technical Specifications

• Form Factor: Board
• Height: 1.3 inches
• Length: 7.7 inches
• Width: 4.1 inches
• Weight (Approx.): 11.20 oz
• LED Indicators: Yes
• Warranty: Lifetime
