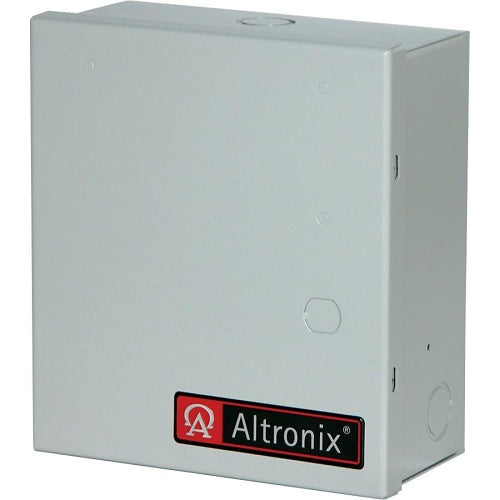

Altronix ACM4E Access Power Controller, Fused Relay Outputs, BC100 Enclosure

Product Description

The Altronix ACM4E is an access power controller designed to convert one 12 to 24 VAC or VDC input into four independently controlled, fuse-protected outputs. This system is essential for various access control applications, routing power to devices such as Mag Locks, Electric Strikes, and Magnetic Door Holders. Each output can operate in Fail-Safe or Fail-Secure modes, offering versatility for different security needs. The unit can be powered by a single source or two independent sources, enhancing its application in various setups.

• Converts one 12 to 24 VAC or VDC input into four outputs.
• Supports Fail-Safe and Fail-Secure modes.
• Fuse protected outputs for safety.

Product Highlights

The ACM4E enables flexible power management for access control systems.

Product Information

Standard Information

• Brand: Altronix
• Manufacturer: Altronix Corporation

Technical Specifications

• Input Voltage: 12 to 24 VAC/VDC
• Output Voltage: 12 to 24 VAC/VDC
• Dimensions: 7.5 inches (width) x 3.5 inches (depth) x 8.5 inches (height)
• Weight: 6.60 lb
• NDAA Compliant: Yes
• Environmental Certification: ROHS
