Product Description

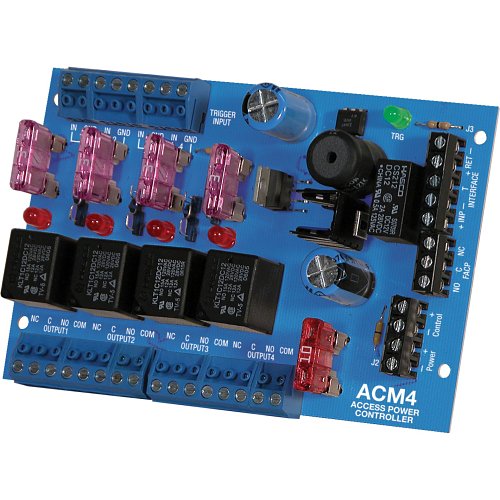

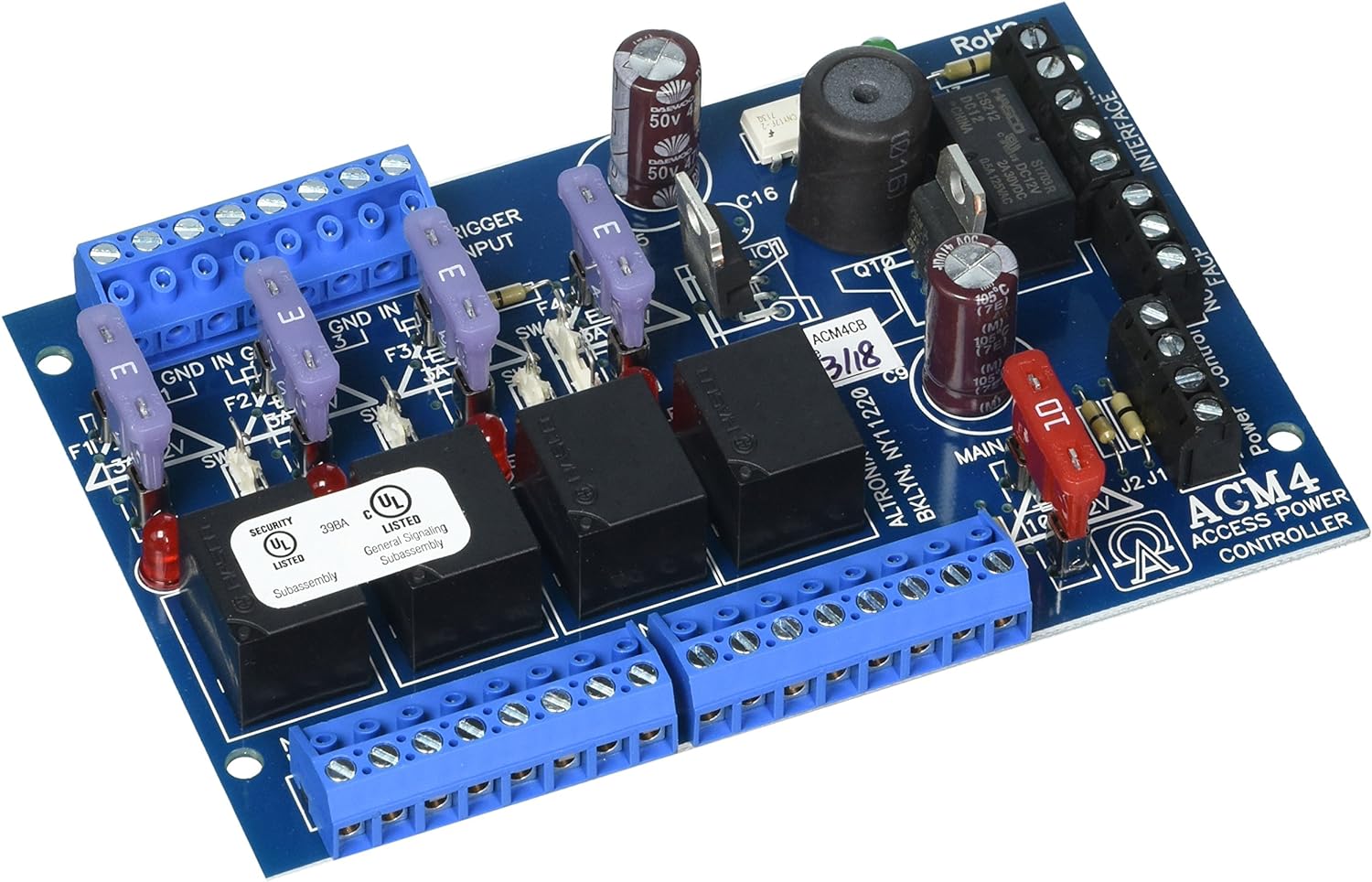

The Altronix ACM4 Access Power Controller Module efficiently converts a single 12 to 24 volt AC or DC input into four individually controlled, fuse-protected outputs. It is an essential device in access control systems, facilitating the activation of various hardware such as magnetic locks, electric strikes, and magnetic door holders. Each output is capable of operating in both Fail-Safe and/or Fail-Secure modes. Additionally, the ACM4 features an FACP (Fire Alarm Control Panel) interface for emergency egress and alarm monitoring functions.
- Independently controlled fuse-protected outputs for enhanced safety and reliability.
- Compatibility with a diverse range of access control hardware devices.
- Fire alarm disconnect feature selectable for any or all outputs, ensuring compliance and safety.
Product Highlights
This Altronix controller routes power to various devices, optimizing the function and security of the access control system. It supports both a single common power source for all functions or dual independent sources for separate operations of the board and connected devices.
Product Information
Technical Specifications
-
Type: Access Power Controller Module
-
Material: Phenolic or Fiberglass
-
Input Voltage: 12 to 24 VAC/VDC
-
Output Configuration: Four fuse protected outputs
-
Compliance: UL Listed, ROHS Compliant
-
Dimensions: 5.13 inches Length x 3.63 inches Width x 1.25 inches Height
