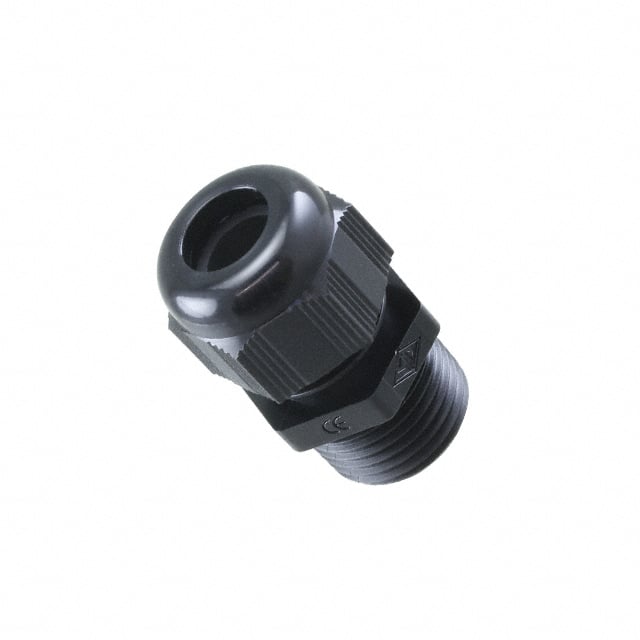

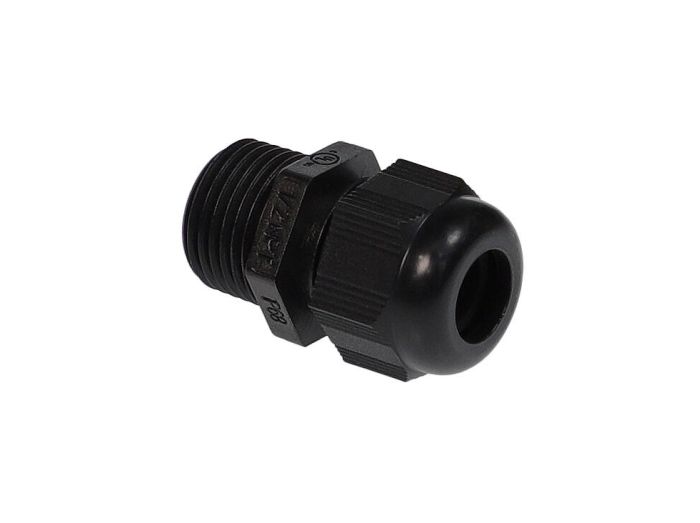

Altech 5308 921 Cable Gland 1/2 in NPT (5-12 mm, Straight)

Product Description

The Altech 5308 921 is a polyamide (Nylon 6) cable gland with 1/2 in NPT thread that provides sealing and strain relief for one round cable. It accepts cable outside diameters from 5 mm to 12 mm, features IP68 ingress protection, and has an operating temperature range of -40 C to 100 C. The gland includes a neoprene seal, a 14.00 mm thread length and is used for cable entries in enclosures and industrial equipment.

• Polyamide (Nylon 6) construction with neoprene seal for environmental sealing and strain relief
• 1/2 in NPT thread, thread length 14.00 mm, overall length 44 mm; fits 5 mm to 12 mm cable diameter
• IP68 ingress protection; operating temperature range -40 C to 100 C; approvals include cUL, UL, VDE

Product Highlights

IP68-rated polyamide cable gland for 5–12 mm round cables, 1/2 in NPT thread with neoprene seal and strain relief

Product Information

Standard Information

• Brand: ALTECH
• Manufacturer Part Number: 5308 921
• Country of Origin: France

Technical Specifications

• Manufacturer: Altech
• Manufacturer Part Number: 5308 921
• Brand: Altech
• Product Series: 5308
• Type: Cable Gland / Cord Grip
• Material: Polyamide (Nylon 6)
• Seal Material: Neoprene
• Thread Size: 1/2 in NPT
• Thread Length: 14.00 mm
• Overall Length: 44 mm
• Cable Diameter Range: 5 mm to 12 mm
• Cable Diameter Min: 5 mm
• Cable Diameter Max: 12 mm
• Number of Cables: 1
• Cable Style: Round
• Angle: Straight
• Protection Rating: IP68
• Operating Temperature: -40 C to 100 C
• Approvals / Certifications: cUL, UL, VDE
• RoHS Compliance: ROHS3 Compliant
• ECCN: EAR99
• Panel Hole Size: 21.2 mm
• Unit Weight: 0.03 lbs
• Detailed Description: Cable gland polyamide (PA), 1/2 in NPT, fits 5-12 mm cable diameter, neoprene seal, IP68
