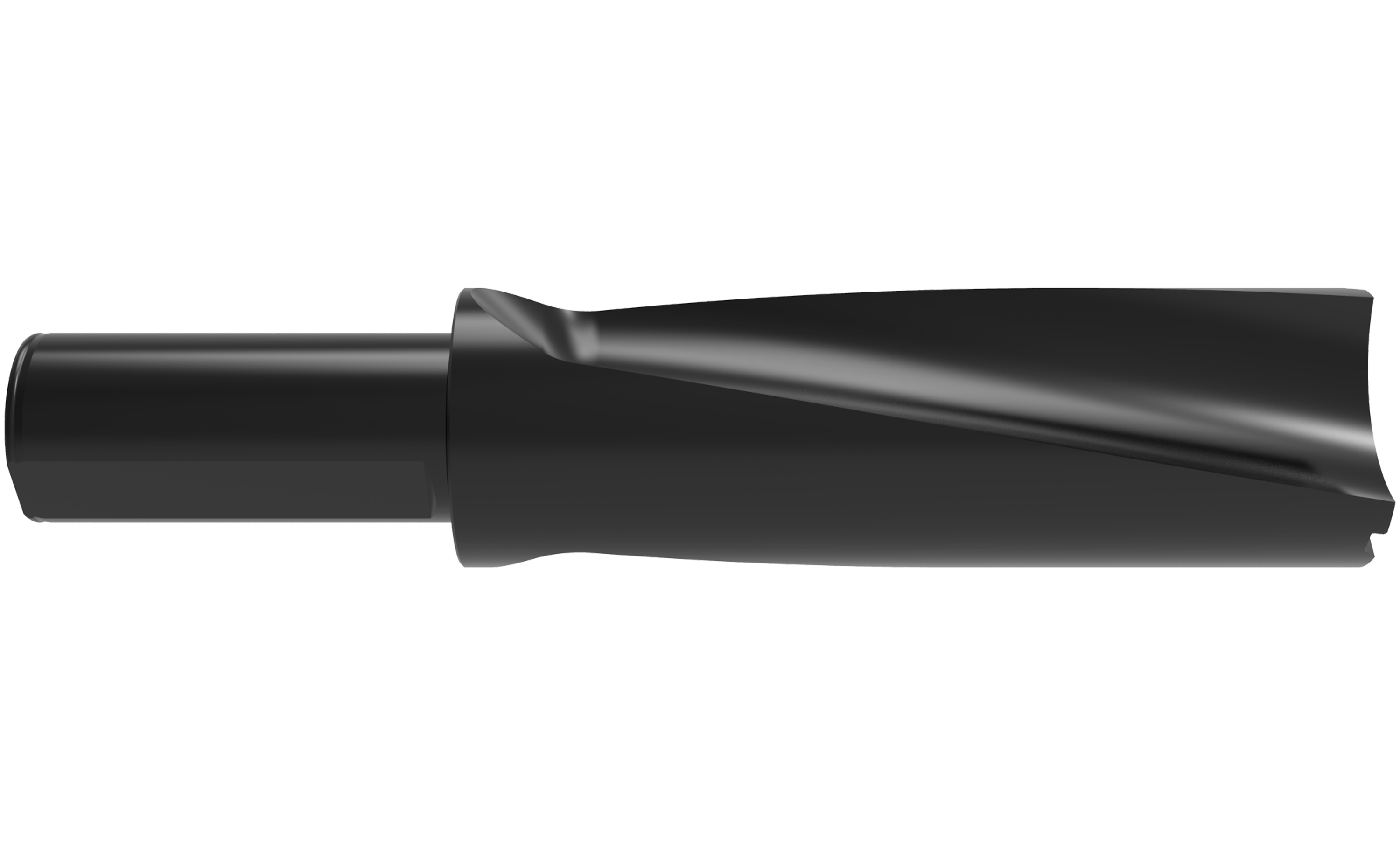

Allied W7603H-200F 76 3XD APX Holder 2 Shank 2.992-3.267

Product Description

The Allied #76 3XD APX Holder with MPN W7603H-200F is designed for precision drilling in various applications. This holder features a drilling diameter range from two point nine nine one eight inches to three point two six seven three inches. It accommodates different specifications to meet the requirements of diverse projects.

• Drilling Depth: Nine inches
• Max. Diameter: Three point two six seven three inches
• Shank Diameter: Two inches

Product Highlights

This product is ideal for those requiring reliable and efficient drilling. The modular design allows easy adjustment for various drilling tasks.

Product Information

Standard Information

• Brand: Allied
• Part Number: W7603H-200F

Technical Specifications

• Drilling Diameter Range: Two point nine nine one eight to three point two six seven three inches (seventy-six point zero to eighty-two point nine ninety mm)
• Max. Diameter: Three point two six seven three inches (eighty-two point nine ninety mm)
• Drilling Depth: Nine inches
• Shank Diameter: Two inches (fifty point eight mm)
• Shank Length: Four inches (one hundred one point six mm)
• Overall Length: Sixteen inches (four hundred six mm)
• Gage Length: Eleven point five one five six inches
