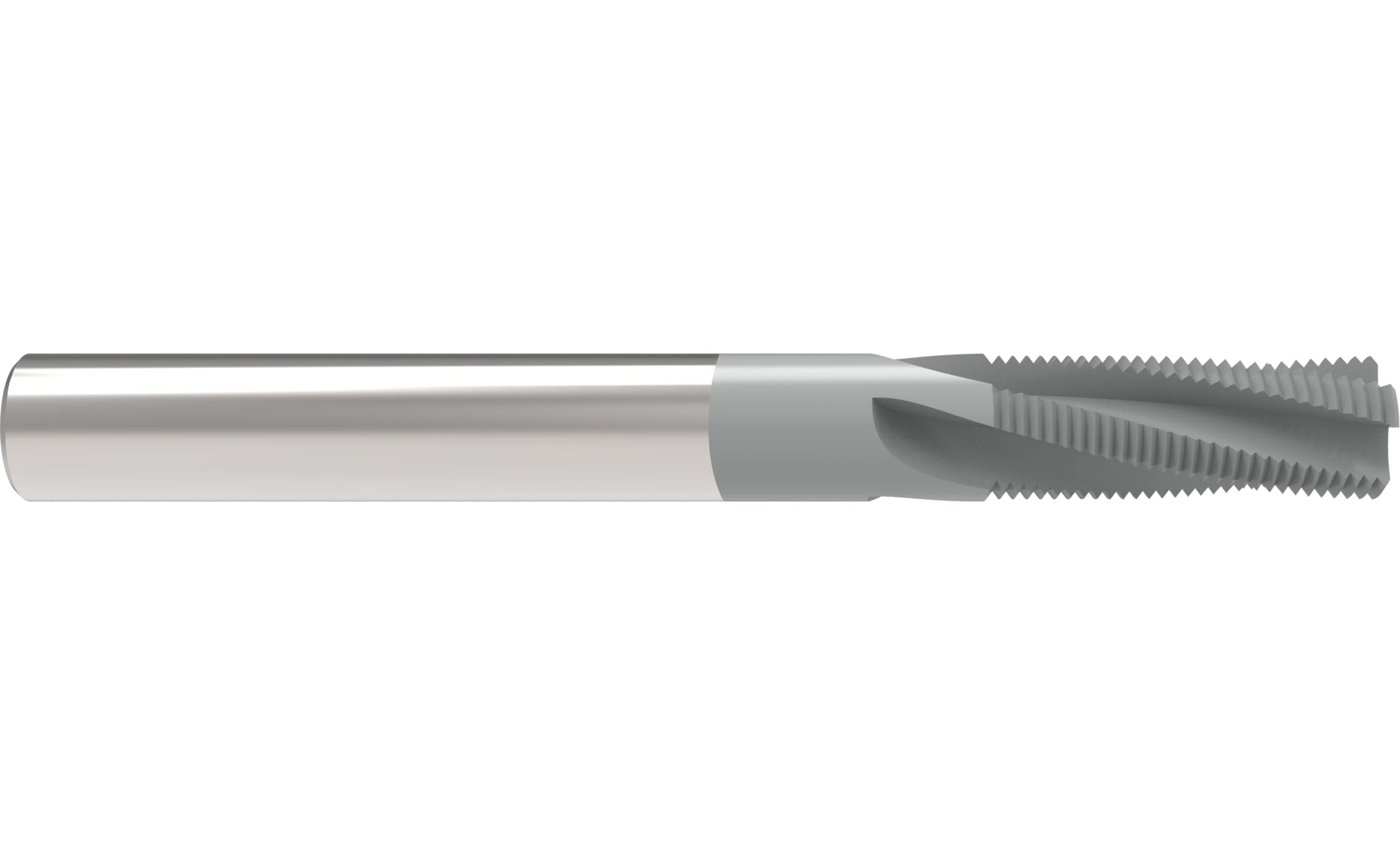

Allied TMUK0250-28 1/4-28 Thread Mill AM210 .180X3/16X1/2LOCX2.5OAL 3FL

Product Description

The Allied TMUK0250-28 is a 1/4-28 thread mill designed for precision cutting. This tool features a cutter diameter of zero point one eight inches, making it ideal for threading applications in various materials. The tool is built with three flutes and a cylindrical shank type for stability and efficiency during operation.

• Thread Size: 1/4 - 28
• Cutter Diameter: 0.1800 inches
• Overall Length: 2.5000 inches

Product Highlights

This thread mill is suitable for internal and external threading, offers a length of cut/reach of zero point five inches, and does not have a coolant hole.

Product Information

Standard Information

• Brand: Allied
• Part #: TMUK0250-28

Technical Specifications

• Threads per Inch: 28
• Cutter Diameter: 0.1800 inches (4.572 mm)
• Length of Cut/Reach: 0.5000 inches (12.700 mm)
• Overall Length: 2.5000 inches (63.500 mm)
• Shank Diameter: 0.1870 inches (4.750 mm)
• # of Flutes: 3
• Shank Type: Cylindrical
• Type of Flute: Helical
