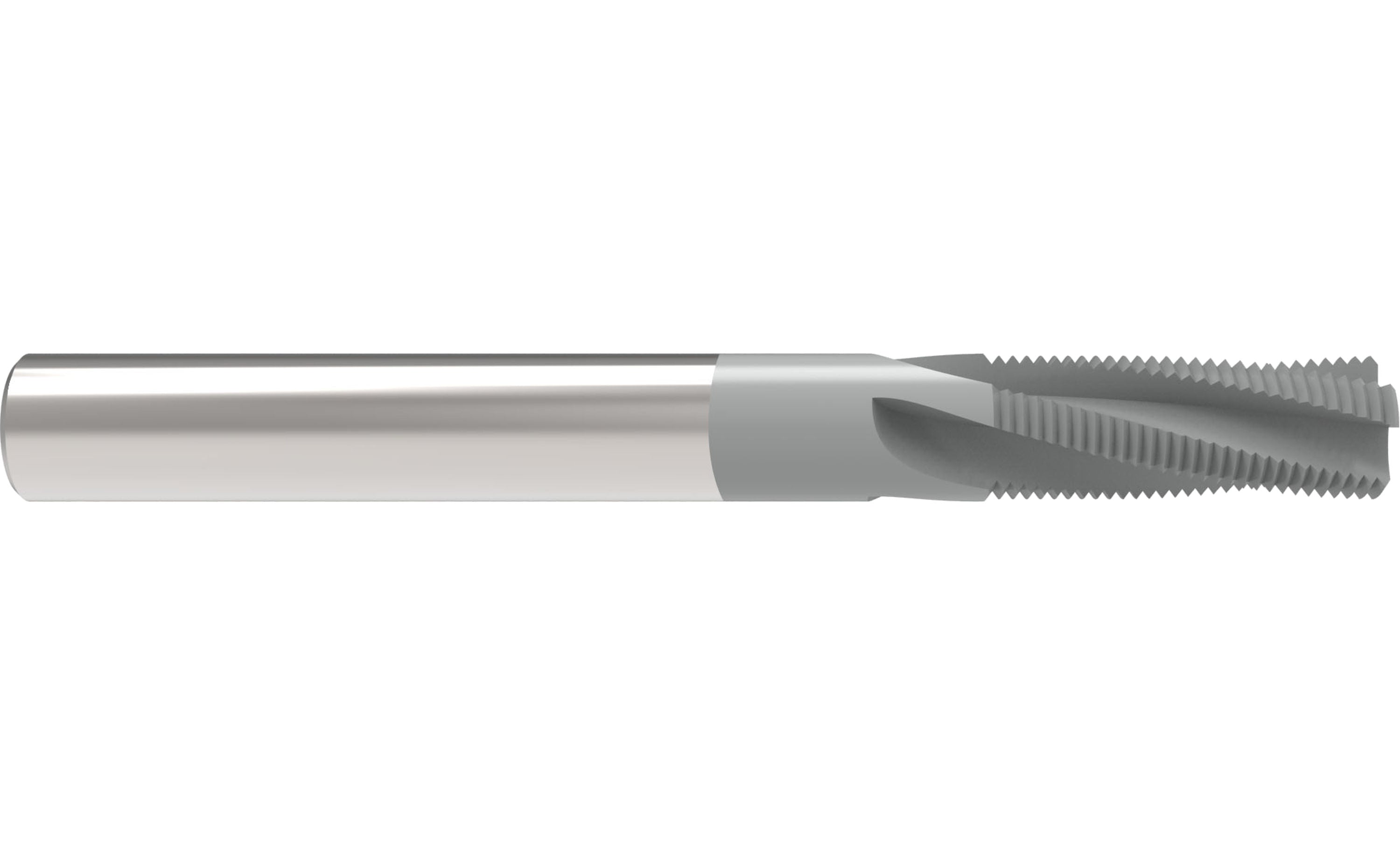

Allied TMUK0250-20 1/4-20 Carb Thread Mill AM210 .180x3/16x.500x2.50 3F

Product Description

The Allied TMUK0250-20 is a 1/4-20 carbide thread mill designed for precise threading tasks. It features a cutter diameter of zero point one eight inches with a length of cut of zero point five inches. The overall length is two point five inches and has three flutes for efficient cutting.

• Designed for threading applications
• Carbide material for durability
• Helical flutes for smooth operation

Product Highlights

This carbide thread mill is suited for machining tasks that require high precision and longevity. Ideal for professionals looking to achieve consistent thread quality.

Product Information

Standard Information

• Brand: Allied
• Part Number: TMUK0250-20

Technical Specifications

• Threads per Inch: 20
• Thread Size: 1/4 - 20
• Cutter Diameter: 0.1800 inches (4.572 mm)
• Length of Cut/Reach: 0.5000 inches (12.700 mm)
• Overall Length: 2.5000 inches (63.500 mm)
• Shank Diameter: 0.1870 inches (4.750 mm)
• # of Flutes: 3
• Shank Type: Cylindrical
• Type of Flute: Helical
• Coolant Hole: No
• Coating: TiAlN
• Material: Carbide
• Internal/External: Internal/External
