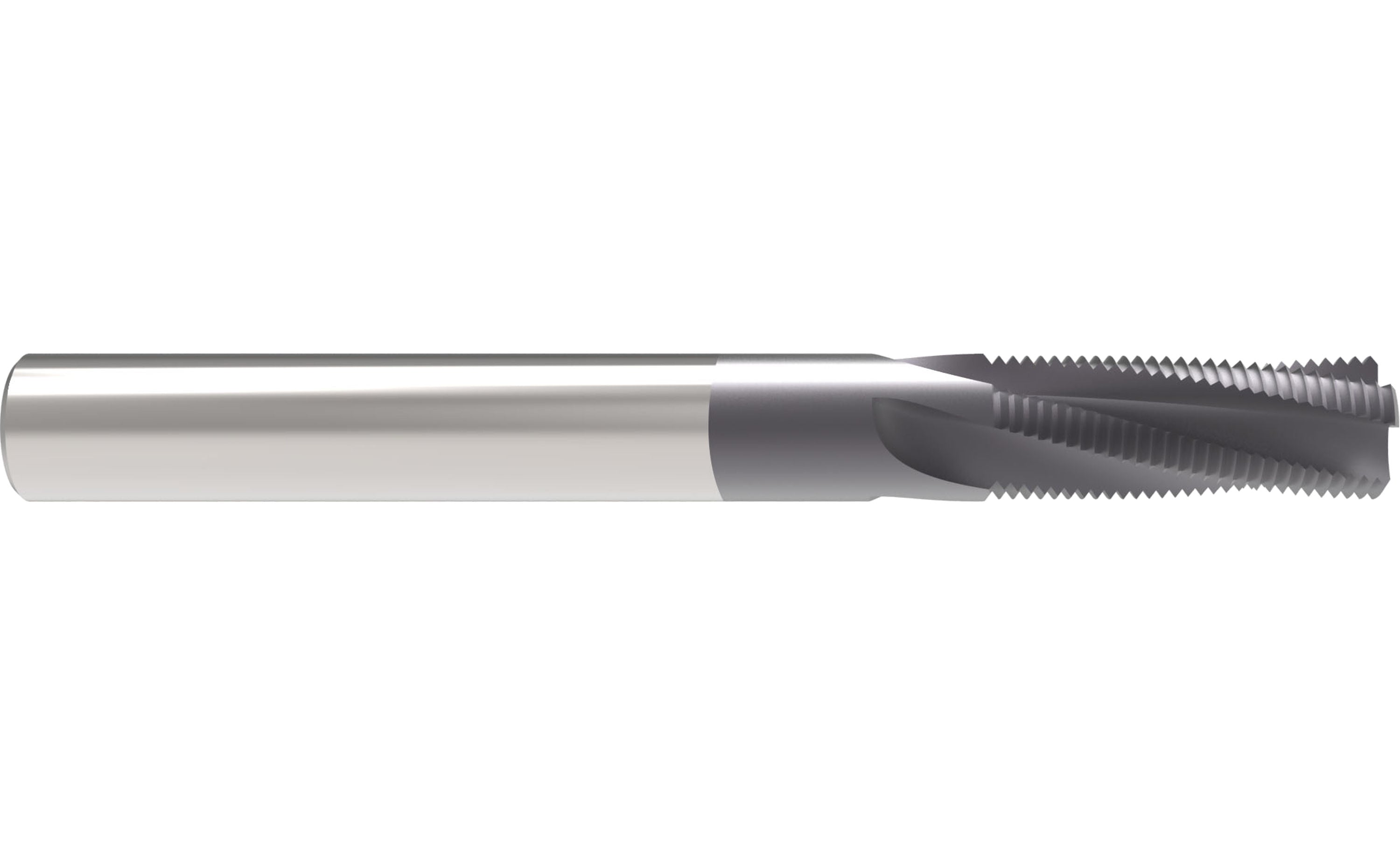

Allied TM25020CH USA 1/4-20 Carb/Tialn Thr Mill W/Cool .180x3/16x.500x2.37 3F

Product Description

The Allied TM25020CH is a thread mill designed for durability and precision. This thread mill features a thread size of one-fourth by twenty, suitable for various threading applications. The cutter diameter measures zero point one eight and the length of cut reach is half an inch. The overall length of the tool is two point three seven five inches, and it includes a cylindrical shank with a diameter of zero point one eight seven. This tool has three flutes and a helical type of flute which enhances cutting efficiency. The coolant hole feature allows for effective chip removal during operation. The TiAlN coating aids in extending tool life and performance in various materials.

• Thread size: 1/4 - 20
• Cutter diameter: 0.1800 inches
• Coolant hole: Yes

Product Highlights

The TM25020CH is ideal for machining applications that require precise threading.

Product Information

Standard Information

• Brand: Allied
• Product ID: USA-TM25020CH

Technical Specifications

• Thread Size: 1/4 - 20
• Cutter Diameter: 0.1800 inches (4.572 mm)
• Length of Cut/Reach: 0.5000 inches (12.700 mm)
• Overall Length: 2.3750 inches
• Shank Diameter: 0.1870 inches (4.750 mm)
• # of Flutes: 3
• Shank Type: Cylindrical
• Type of Flute: Helical
• Coolant Hole: Yes
• Coating: TiAlN
• Material: Carbide
• Internal/External: Internal/External
