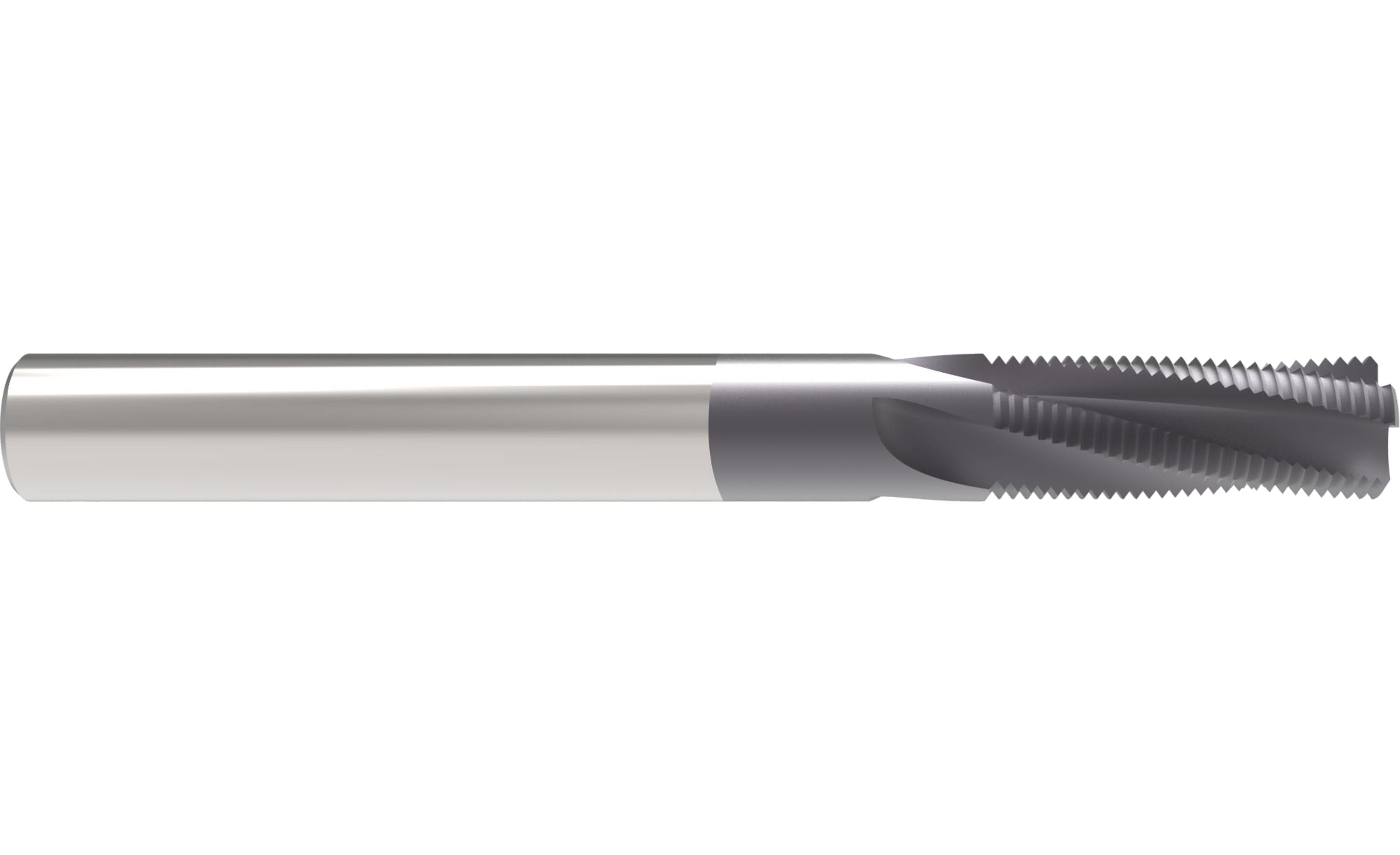

Allied TM10008 USA 1-8 Carb/TiAlN Threadmill .620x5/8x1.375x4 4F

Product Description

The Allied TM10008 is a USA-made thread mill designed for precision threading applications. This tool features a thread size of one to eight. The cutter diameter measures zero point six two inches. The length of cut is one point three seven five inches, making it suitable for deep threading tasks. With an overall length of four inches, this thread mill combines performance and durability in various machining environments.

• High-quality carbide material for long tool life
• Four-flute design enhances chip removal
• TiAlN coating to increase wear resistance

Product Highlights

Suitable for internal and external threading, the Allied TM10008 thread mill offers efficient performance across different materials.

Product Information

Standard Information

• Brand: Allied
• Availability: 4 In Stock

Technical Specifications

• Threads per Inch: 8
• Thread Size: 1 - 8
• Cutter Diameter: 0.6200
• Length of Cut/Reach: 1.3750 (34.925 mm)
• Overall Length: 4.0000 (101.600 mm)
• Shank Diameter: 0.6250 (15.875 mm)
• # of Flutes: 4
• Shank Type: Cylindrical
• Type of Flute: Helical
• Coolant Hole: No
• Coating: TiAlN
• Material: Carbide
• Internal/External: Internal/External
