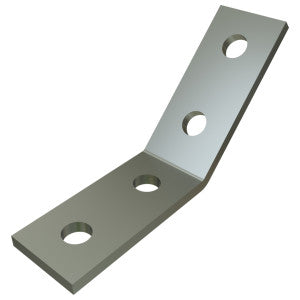

Allied PS781-45-DEG-EG Power-Strut 45 Degree Open Angle Connector

Product Description

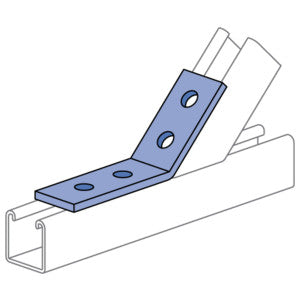

The Allied PS781-45-DEG-EG is designed for creating strong connections at a 45-degree angle. This connector is made from ASTM A575/A576/A36 mild steel and features an electrogalvanized finish for enhanced durability. The fitting is ideal for channel connections and is equipped with either two or four holes, each having a diameter of nine-sixteenths inches. The overall dimensions are two and five-sixteenths inches by three inches or three and eleven-sixteenths inches by three and one-half inches with a thickness of one-quarter inch.

• Constructed from ASTM A575/A576/A36 mild steel.
• Electrogalvanized finish for corrosion resistance.
• Accommodates various channel connections with multiple hole configurations.

Product Highlights

This product offers reliable angle connections for various structural applications.

Product Information

Standard Information

• Manufacturer Part Number: PS781-45-DEG-EG
• Brand: Allied

Technical Specifications

• Angle: 45 degrees
• Material: Steel
• Finish: Electrogalvanized
• Thickness: One-quarter inch
• Number of Holes: Four
• Hole Size: Nine-sixteenths inch diameter
• Hole Spacing From End: Thirteen-sixteenths inch
• Hole Spacing On Center: One and seven-eighths inches
