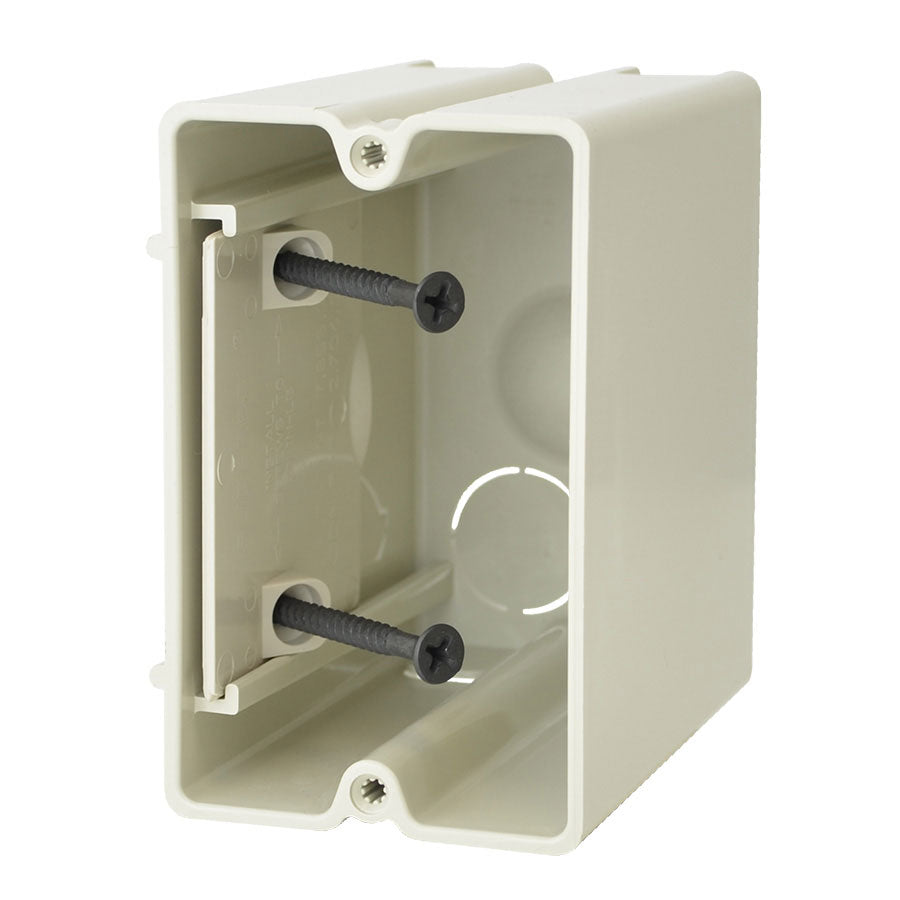

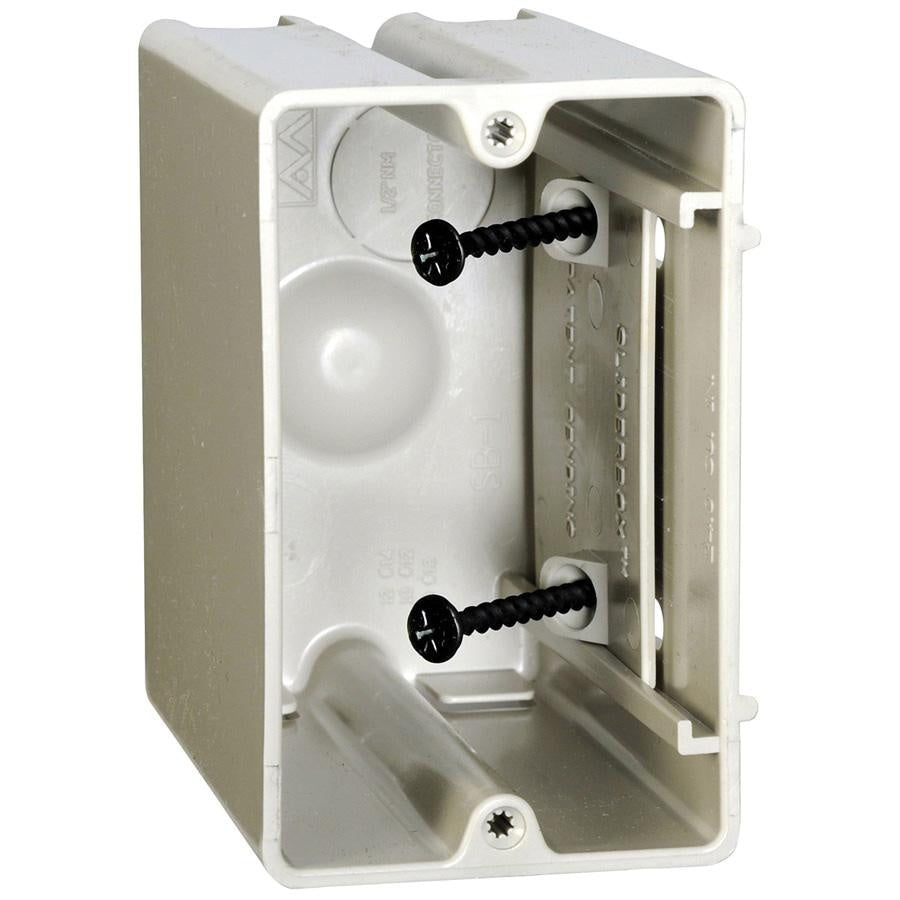

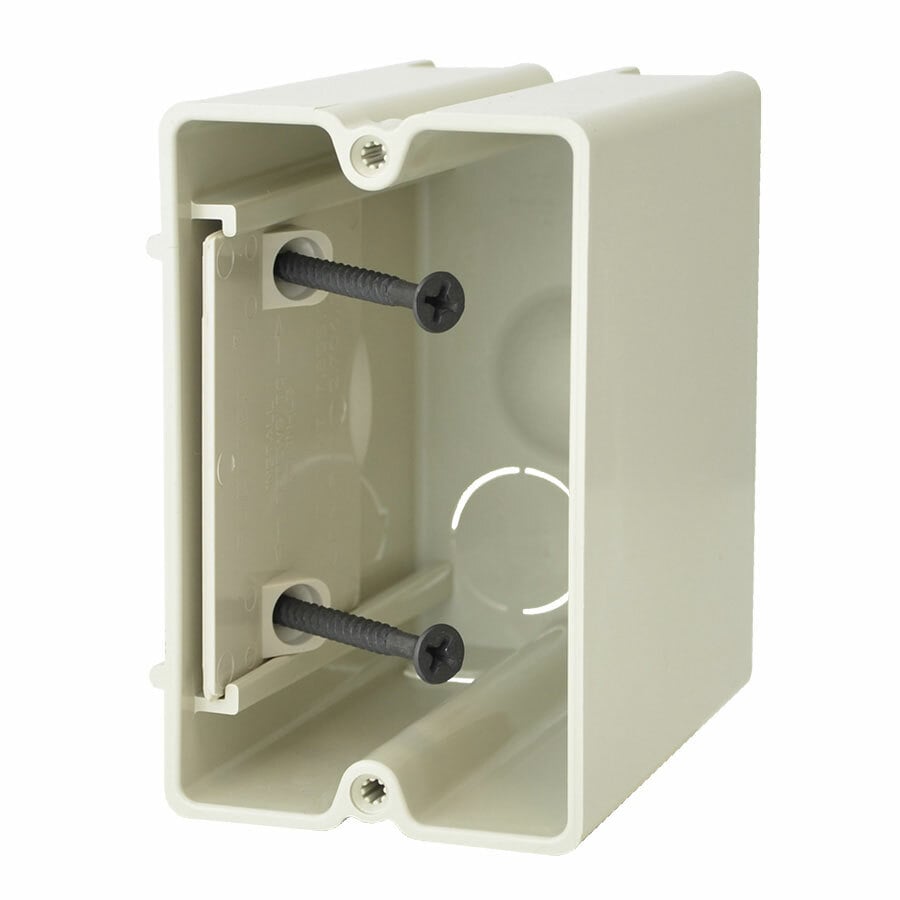

Allied Moulded Products SB-1 Adjustable 1-Gang Switch/Receptacle Outlet Box 23 Cubic Inch

Product Description

The Allied Moulded Products SB-1 is a single gang adjustable electrical box designed for use with nonmetallic sheathed cable. This box has a capacity of twenty-three cubic inches, making it suitable for various applications.

• Interior is equipped with molded-in splined device holes
• Adjustable slider plate accommodates different wall substrate thicknesses
• Rectangular exterior for easier cut-in during installation

Product Highlights

The SB-1 is meant for new and old work residential construction where two-hour fire resistive walls and ceilings are required. It features an adjustable slider plate that helps installation in irregular wall thicknesses and provides a secure fit.

Product Information

Standard Information

• Catalog Number: SB-1
• Manufacturer: Allied Moulded Products

Technical Specifications

• Application: New and old work residential construction
• Material: PVC - Thermoplastic
• Size: D=3 9/16, W=2 5/16, H=3 3/4 inches
• Cubic Capacity: 23.0 cubic inches
• Knockouts: Yes, four no-tools cable knockouts
• Mounting Type: Internal screws with adjustable slider plate
• Insulation: Nonconductive nonmetallic
• Standards: UL 514 C
